FC-180 RFID card reader can be selected according to the card type: FC-180E (ID card) or FC-180M (ordinary Mifare card), FC-180H (HID card), FC-180S (Identification card + Mifare card + CPU card) ＋NFC card＋residence permit＋NFC mobile phone)
FC-181 RFID Card Reader, adopts the advanced RF technology and embedded mini access controller, combined with efficient decoding algorithm to achieve 64 bits Read-Only EM4100 compatible ID card(EM Card) and 13.56MHz frequency, encrypted algorithm to get the MIFARE format Mifare card data, get the card number by calculate, have high sensitive, small current, power supply, low price, excellent functions. FC-181 RFID Card Reader is suitable for access control system, time attendance system, charge, burglar etc.
Working Voltage: DC10.8 - 13.8V >Standard 12V
Antenna: Build in
Working Current: 50-70mA
Communication Distance: 120m
Transfer Way: Real-time
Reading Speed: < 0.2s
Reading Spacing: < 0.5s
Operating Humidity: 10-90%
Speaker: buzzer
LED: Built in three groups
Working Temperature: -0℃ to +65℃
Reading Frequency: 125KHz / 13.56MHz
Device Color: Silver + Grey

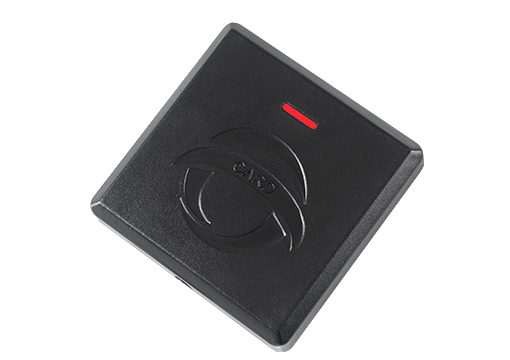

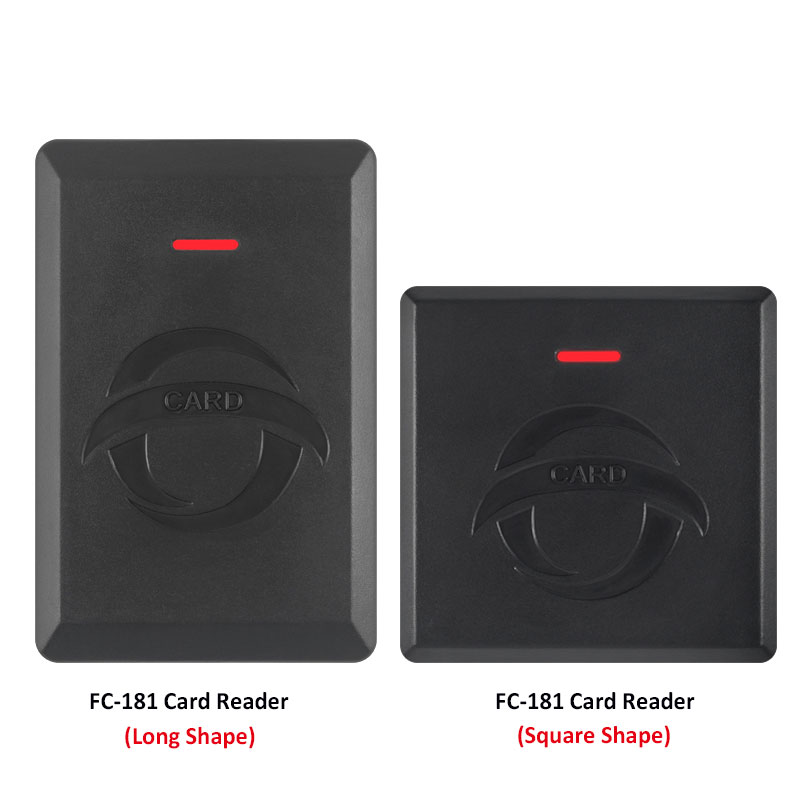

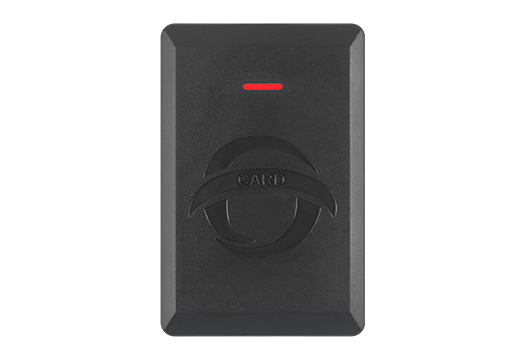

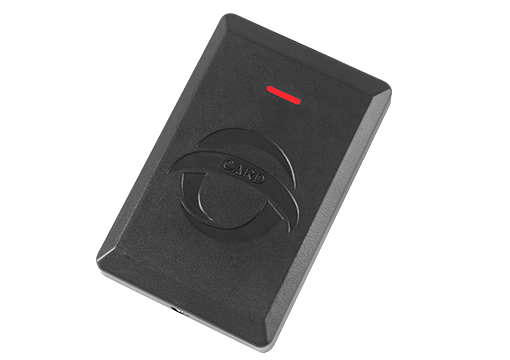

Dimensions: FC-181 (long section) 114.7*74.6*17mm, FC-181 (square section) 87.2*87.2*17mm
Models: FC-180E, FC-180M, FC-180H, FC-180S
Networking: Wiegand 26 bits/Wiegand 34 standard format data output
Shell Material: PVC and Spray-painting
Reading Distance: 0-60mm (ID Card), 0-50mm (Mifare Card)
Introduction:
When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.
Wiring Instructions:
FC-181 access card reader provides Wiegand 26 or 34 format output, provides LED control and BEEP control line.
+12V: Working voltage: DC10.8-13.8V -> standard DC 12V
GND: Ground
DO: Data 0
D1: Data 1
LED: Light - emitting diode
BUZ: Buzzer
FOR: WG26/34

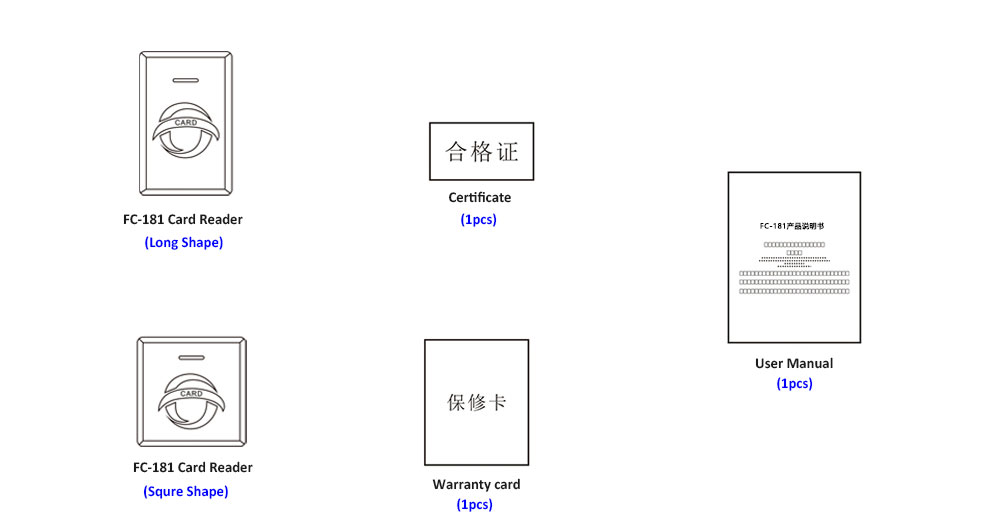

Accessories:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
