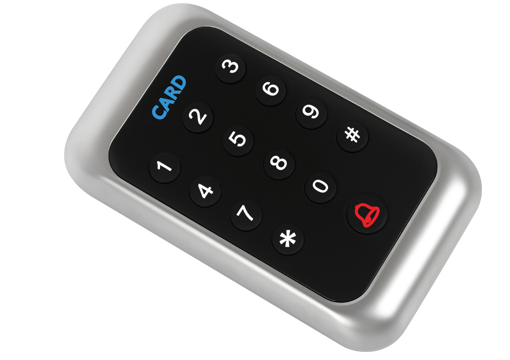

FC-163 Metal Keyboard RFID Card Reader
FC-163 Metal Keyboard RFID Card Reader is consisted of ID type and Mifare type. This card reader adopts the advanced RFID receiving circuit design and embedded micro-controller, and combines the efficient decoding algorithm to complete the reading of 64bits read-only EM4100 compatible ID card.
FC-163 metal keyboard RFID card reader Mifare type adopts 13.56MHz reading frequency. Combined with encryption algorithm, it supports the reading of zero sector data of MIFARE format Mifare card. After operation and decoding, the card number is obtained, and the misreading rate of key access card reader is less than 0.01%. Support keyboard, support Wiegand output keyboard command, the series of products with high sensitivity, low working current, single DC power supply, low price, high performance characteristics.
FC-163 Metal Keyboard RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.
Working Mode: Wiegand 26/34
Reading Speed: < 0.2s
Reading Interval: < 0.5s
Reading Distance: 0-60mm (ID card) 0-50mm (Mifare card)
Reading Type: ID card/Mifare card
Reading Frequency: 125KHz/13.56MHz
Working Temperature: -0℃ to 65℃
Working Humidity: 10-90%
Working Voltage: DC10.8-13.8V Standard DC 12V
Build in LED: Three groups LED
Build in Speaker: Buzzer
Working Current: 120-180Ma
Networking: WG 26/34 bits standard format data output
Communication Distance: 100m
Transfer Way: Real time
Shell Material: zinc alloy + acrylic board
Size:
Instruction:
Metal Keyboard RFID Card Reader When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.

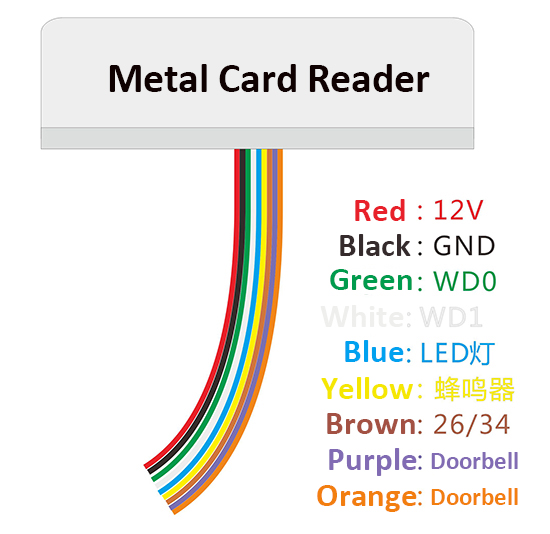

Wiring Connection Diagram:
Wiring instructions:
FC-163 metal key access control card reader provides WIEGAND26 or 34 format output, and provides LED control and BEEP control lines.
Parts List:
