It supports different proximity cards (EM card, EM compatible card, EM format encryption card, MF1 format Mifare card) according to the model to open the door. Choose the appropriate way to open the door according to your needs.

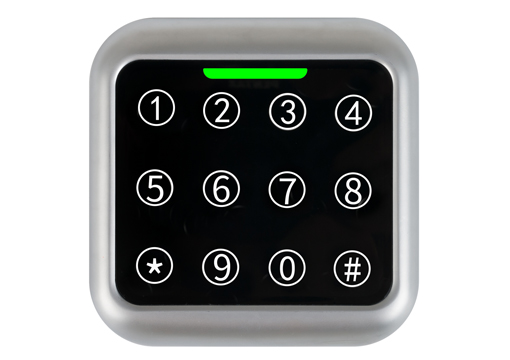

FC-392E/M Metal Access Controller
FC-392E Metal Access Controller is specially designed for electric lock and security system. It adopts a unique metal shell design, smart keyboard panel operation, built-in high-end microprocessor, and its anti-interference ability, safety and reliability the performance is extremely high, and can self-diagnose and self-protect to ensure that the system works safely and effectively.
The access controller can support different proximity cards (EM card, EM compatible card, EM format encryption card, MF1 format Mifare card) to open the door according to the model. It has three types of door opening: proximity card opening, password opening, proximity card + password opening, etc. The user can choose the appropriate way to open the door according to their needs. The access control parameters can be set directly on the keyboard without a computer, making the operation easier.
FC-392E/M access controller has a keyboard self-locking function. The user can set the number of keyboard errors and preset the keyboard self-locking time, which can effectively prevent others from detecting the password to open the door. Anti-disassembly alarm function, that is, disassembling the device under working conditions , the access control will trigger an alarm and output a prompt sound. The illegal door opening alarm function, the device detects abnormal opening of the door through the door sensor switch signal, the access control will trigger an alarm and output a prompt sound. After the door sensor is installed, this function is automatically activated.
The access controller can store up to 10,000 sets of door opening data information (including proximity card opening data, password opening data, proximity card + password opening data), and all stored information will not be lost due to power failure. It also supports doorbell output and can be matched wired doorbell use.
The metal access controller is powerful and easy to install. It is an ideal access control device used in offices, homes, computer rooms and public places.
Working Vlotage: DC9-13.8V
Woring Current: < 150mA
Working Temperature: -10℃- +75℃
Reading Speed: < 0.2s
User Capacity: 1000 people (expandable to 10000)
Exit Switch: Support
Door Sensor Alarm: Support
Admin Card Management: Support
Data Backup: Support
Wireless Remote Controller: Support
Alarm Output: Support
Offline Operation: Support
Issuing Device: Keyboard, Admin
Size: 86.1×86.1×21.5mm

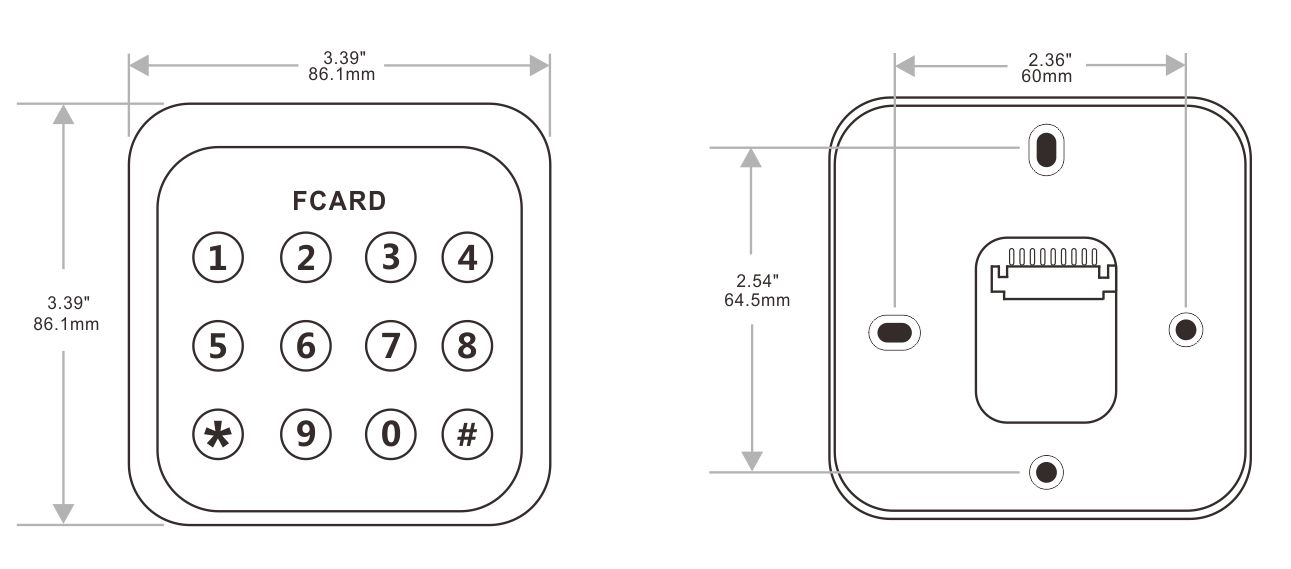

Produtc Size:
Wiring Diagram：
Wiring Port：
+12V: Power supply anode, input range: DC9-13.8V.
GND: Power supply cathode, it's also the common point of the signal.
NC: Normally close point of the relays, current load is DC3A/30V.
COM: Common point of the relays, current load is DC3A/30V.
NO: Normally open point of the relays, current load is DC3A/30V.
PUSH: Exit button, low level unlock.
DOOR: Door status switch, connected with magnet, low level means door shut.
ALM: Alarm output port, low level there is alarm, current load is 100ma.
FIRE: Connect the alarm signal (Connect GND trigger).
BELL: Connected with doorbell.
Indicator Light:
Power light: usually light green light; when swiping card, light blue light

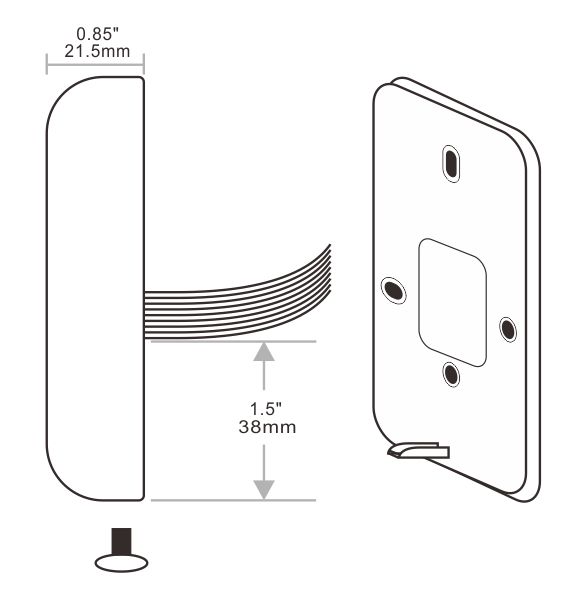

Structure Diagram:
Compatible with FCARD one card pass management system, support: access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc. unified management, realizing one card one library real one card pass system .
