The metal card reader has the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance, etc. It is suitable for various radio frequency identification applications such as access control, time attendance, charging, and anti-theft

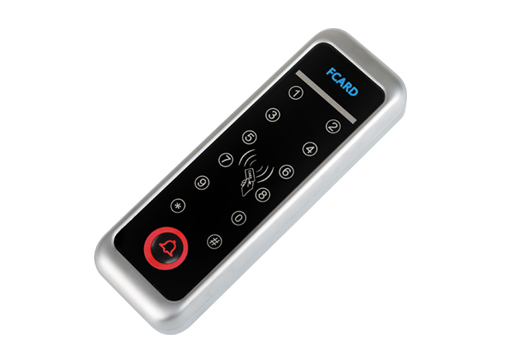

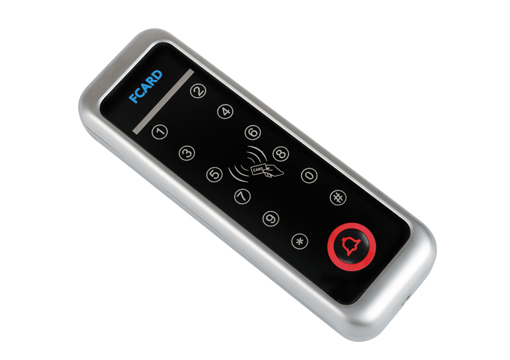

FC-191 Metal RFID Card Reader is composed of ID type and Mifare type. The card reader uses advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, to complete the reading of 64bits Read-Only EM4100 compatible ID cards. FC-191 Metal RFID Card Reader Mifare type adopts 13.56MHz reading frequency, combined with encryption algorithm to support the reading of zero sector data of MIFARE format Mifare card. The card number is obtained after calculation and decoding. The misread rate of metal access control card reader is less than 0.01%. Support keyboard, support Wiegand output keyboard commands, this series of products have the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance and so on.
FC-191 Metal RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.
Working Mode: WG 26/34
Reading Speed: < 0.2s
Reading Interval: < 0.5s
Reading Distance: 0-60mm (ID card) 0-50mm (Mifare card)
Reading Type: ID card/ Mifare card
Reading Frequency: 125KHz/13.56Mhz
Working Temperature: -0℃ to +65℃
Working Humidity: 10-90%
Working Voltage: DC 12V
Build in LED: Three groups of LED
Build in Speaker: Buzzer
Working Current: 120-180Ma
Networking: WG 16/34 bits standard format data output
Communication Distance: 100m
Transfer Way: Real time
Shell Material: zinc alloy + acrylic board
Dimensions: length 133mm, width 45mm, height 19mm

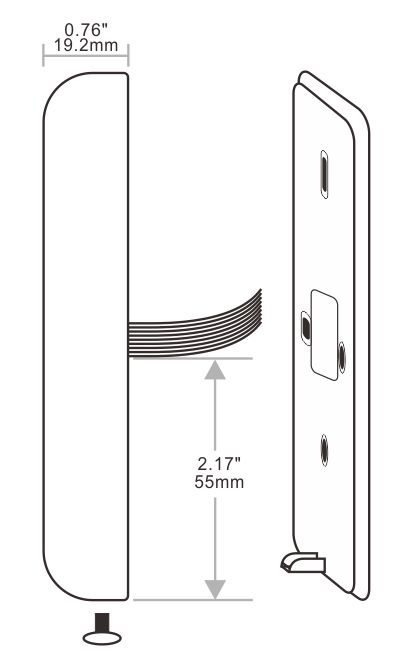

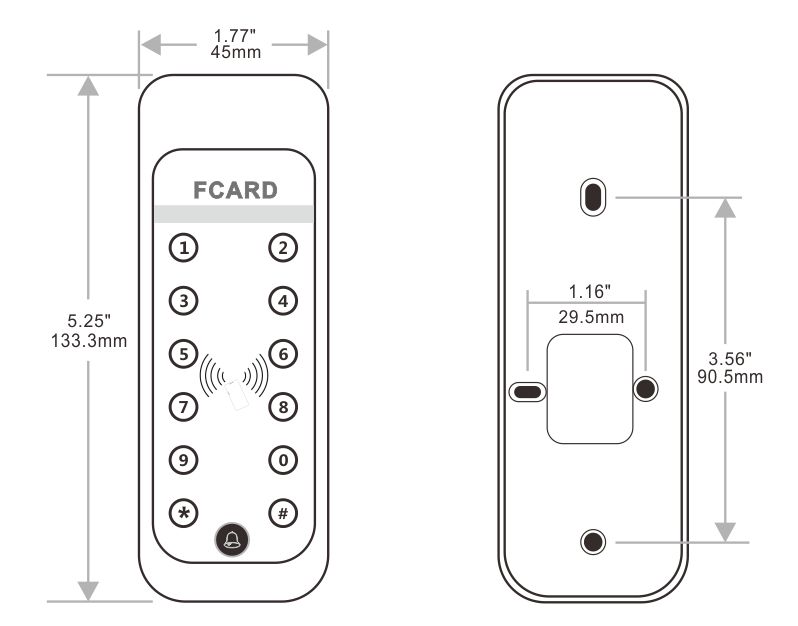

Product Size:
Instruction:
When the card is close to the metal card reader, the reader’s red light turns to green and then flashes again to red. The buzzer sounds once to indicate sending data. For the same ID card, the interval between two card readings is shorter than 500ms. Improper card reading nor sending data. After reading the card, if the card is still in the radio frequency card, the reader will not give any prompts and will not send data. Different cards enter the RF card response area, and the card reader will read the card continuously and output data.
Wiring Instructions:
FC-191 metal access control card reader provides WIEGAND26 or 34 format output, provides LED control and BEEP control circuit.

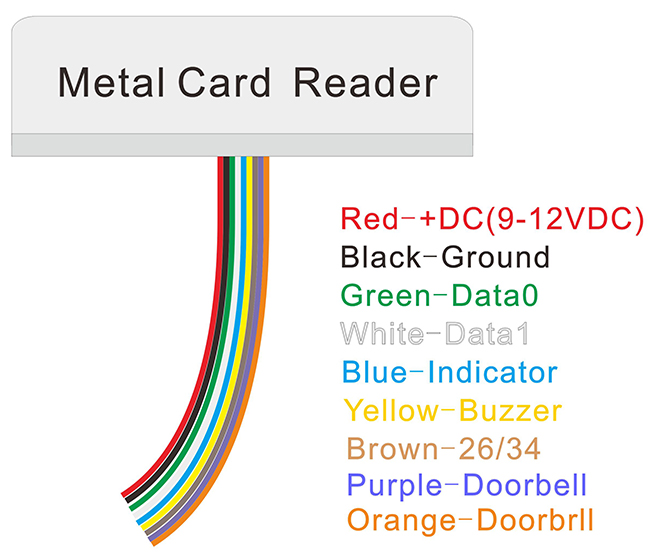

Metal Card Reader Wiring:
FC-191 card reader support WG26/34 format output, supply LED control and BEEP control line.
+12V: DC10.8-13.8V Standard DC12V
GND: Ground
DO: Data O
D1: Data 1
BUZ: Buzzer
FOR: WG26/34
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
