FC-190 Metal RFID card reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.
FC-190 metal RFID card reader is composed of ID type and Mifare type. The card reader uses advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, to complete the reading of 64bits Read-Only EM4100 compatible ID cards.
FC-190 metal RFID card reader Mifare type adopts 13.56MHz reading frequency, combined with encryption algorithm to support the reading of zero sector data of MIFARE format Mifare card, the card number is obtained after calculation and decoding, FC-190 metal RFID card reader is wrong the reading rate is less than 0.01%. Support keyboard, support Wiegand output keyboard commands, this series of products have the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance and so on.
FCARD metal card reader radio frequency card reader is suitable for various radio frequency identification applications such as access control, time attendance, charging, and anti-theft.
Working Mode: WG 26/34
Reading Speed: < 0.2s
Reading Interval: < 0.5s
Sensing Distance: 0-60mm (ID card) 0-50mm (Mifare card)
Reading Type: ID card/Mifare card
Reading Frequency: 125KHz/13.56MHz
Working Temperature: -0℃ to +65℃
Working Humidity: 10-90%
Voltage: DC10.8-13.8V Standard DC 12V
Build in LED: Three groups of LED
Build in Speaker: Buzzer
Working Current: 50-70mA
Networking: Wiegand 26bits/Wiegand 34 standard format data output
Communication Distance: 100m
Transfer Way: Real time
Shell Material: zinc alloy + acrylic board

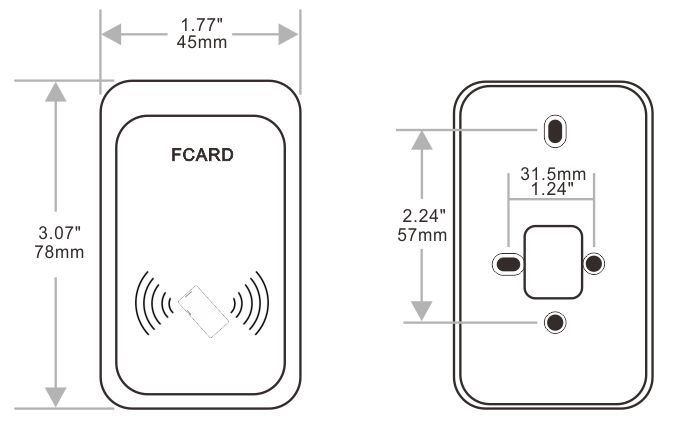

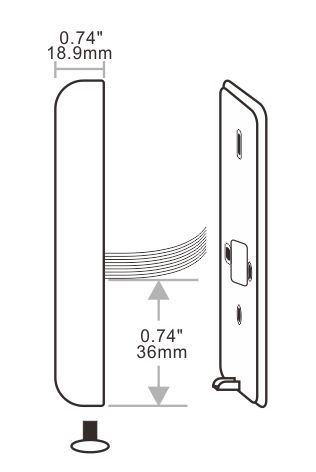

Product Size:
Instruction:
When the card is close to the card reader, the red light of the card reader turns to green and then turns to red. The buzzer sounds once to indicate sending data. For the same ID card, the interval between two readings is shorter than 500ms, which is inappropriate The card does not send data either. After reading the card, if the card is still in the radio frequency card area, the reader will not give any prompts and will not send data. Different cards enter the RF card response area, and the card reader will read the card continuously and output data.
Wiring:
FC-190 card reader support WG26/34 format output, Supply LED control and BEEP control line.
+12V: DC10.8-13.8V Standard DC12V
GND: Ground
DO: Data O
D1: Data 1
BUZ: Buzzer
FOR: WG26/34
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
