FC-185 RFID card reader is suitable for various radio frequency identification applications such as access control, time attendance, charging, anti-theft, etc.

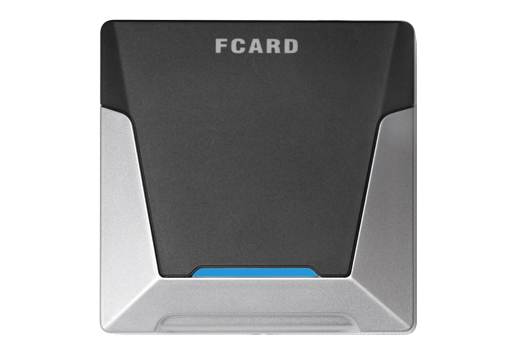

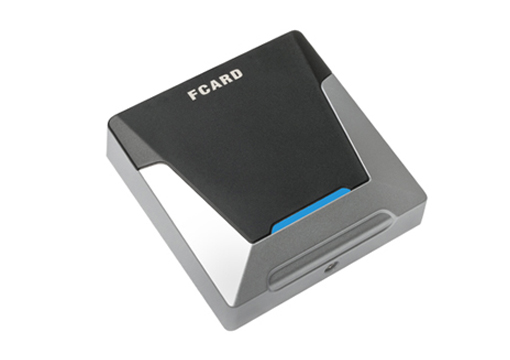

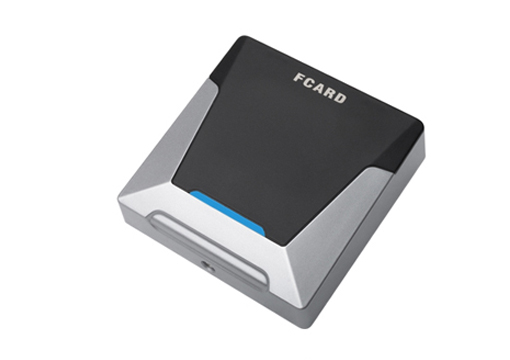

FC-185 RFID Card Reader
FC-185 RFID Card Reader, use the advanced RF technology and embedded mini access controller, combined with efficient decoding algorithm to achieve 64 bits Read-Only EM4100 compatible ID card(EM Card) and 13.56MHz frequency, encrypted algorithm to get the MIFARE format Mifare card data, get the card number by calculate, have high sensitive, small current, power supply, low price, excellent functions. FC-185 RFID Card Reader is suitable for access control system, time attendance system, charge, burglar etc.
The models of 185 RFID card readers are divided into:
FC-185E (ID card)
FC-185M (Ordinary Mifare card)
FC-185H (HID card)
FC-185S (Identification card + Mifare card + CPU card + NFC card + residence permit + NFC mobile phone)
Working Mode: DC10.8-13.8V -> Standard DC12V
Antenna: Build in
Working Current: 50-70mA
Communication Distance: 120m
Transfer Way: Realtime
Reading Speed: < 0.2s
Reading Interval: < 0.5s
Working Humidity: 10-90%
Build in Speaker: Buzzer
LED: Built in three groups
Working Temperature: -35℃-75℃
Reading Frequency: 125KHz / 13.56MHz
Device Color: Silver + Grey
Size: 87L x 87W x 23H mm
Models: FC-185E, FC-185M, FC-185H, FC-185S
Networking: Wiegand 26bits / Wiegand 34 standard format data output
Shell Material: PVC and Spray-painting > Internal have black resin adhesive(prevent water)
Reading Distance: 0-60mm(ID card) 0-50mm (Mifare card)
Functions(Optional):
FC-185 RFID Card Reader and FC-K7 series Keypad RFID Reader, support secret algorithm technology circuit(optional), it integrated with the SM1 module of CPU RFID Reader, RF interface module and key to management module to make the RF reader core.
The communication between RFID Card and RFID Reader use SM1 algorithm to identification and encrypted data, to ensure the products security, it provides the only security authentication identification code to make sure that the different RFID Card reader can compatible with each other, enhance the products compatibility.

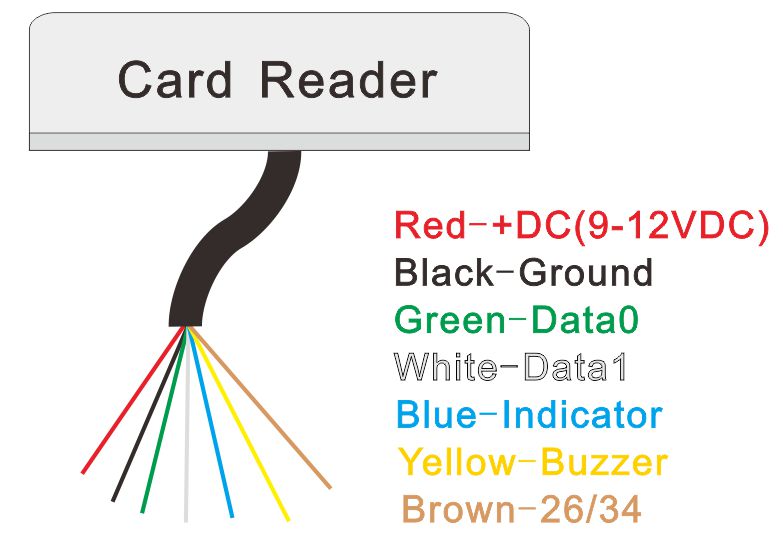

Wiring Instructions:
FC-185 access control card reader provides WIEGAND26 or 34 format output, provides LED control and BEEP control circuit.
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library .
