FC-198 series password keyboard has FC-198E, FC-198H, FC-198M and other models, respectively supports ID card, HID card, Mifare card and other cards, and supports 1000 card data capacity (standard) or 21000 cards the data is dual-capacity, which can meet a variety of different capacity requirements.

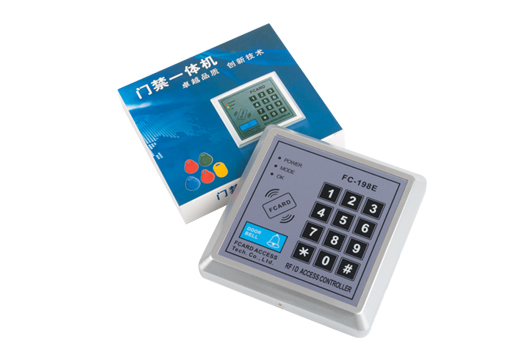

FC-198E Keypad Access Controller
FC-198 series password keyboard access controller is an access control product developed and produced by "Guangzhou Fcard Electronics Co., Ltd." after many years of upgrading and updating. The access control supports functions such as data backup, anti-copy card opening, multi-door data copying, anti-detection opening, master card issuing, self-numbering card issuing, HID card identification technology, etc. It is currently a relatively advanced and relatively expensive access control product.
FC-198 series password keyboard access controller is specially designed for electric door lock and total security system. Today, the product provides 5 door opening methods: Mifare card, button door opening, password opening door, card + password opening door, wireless remote control door opening, etc. Multiple door opening methods can be used at the same time, and users can choose their own suitable door opening method at will. At the same time, it supports an external standard Wiegand 26 card reader to realize the separation of card reading and control, and achieve a higher level of security needs. Programming settings are carried out directly on the password keyboard, which is easy to operate and simple to use. FC-198 access control has strong anti-interference ability and self-diagnosis protection ability to ensure the safe and effective normal operation of the system. Supports normally open mode, which can be used to enter and exit the office area without reading a card during busy hours at work. Built-in anti-disassembly and anti-alarm circuit can effectively prevent illegal behavior. Reliable memory information data will not be lost due to power cut. FC-198 series password keyboard access controller adopts large memory to store up to 21,000 sets of card data or password data (standard is 1000 sets). It uses a high-speed processor. The card processing speed is less than 0.6 seconds, providing ultra-fast processing speed.
FC-198 series password keyboard has multiple models, which support ID card, HID card, Mifare card (support Yangchengtong card) and other cards, and support 1000 data capacity (standard) or 21,000 data sets. Meet many different needs. FC-198 series access control is powerful and easy to install. It is generally used in large groups, offices, families, school dormitories, office buildings, institutions and other places with a wide range of applications.
(FC-198M that supports Mifare card can support reading Mifare card, CPU card, NFC card, Android NFC mobile phone, UnionPay card, second-generation and third-generation Identification card, Yangchengtong...in one.)
Working Voltage: DC 9-13.8V
Working Current: < 120mA
Working Temperature: -0 ℃ - +65 ℃
Working Humidity: 10-90%
Reading Speed: < 0.2 seconds
Reading Distance: 0-80mm
Control Output: Dry node relay output, max current is 5A
User Capacity: 1000 (Can be extended to 21000 groups)
External Wiegand: Supports 1 set of external WG card readers to realize entry and exit card reading verification.

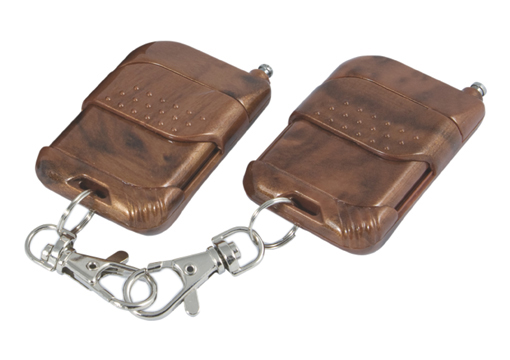

Remote Control: Support 315MHZ wireless remote controller

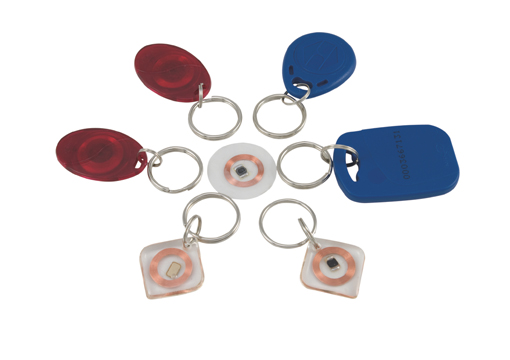

Issuing Device: Keyboard, admin card
Size: 117 x 117 x 20mm

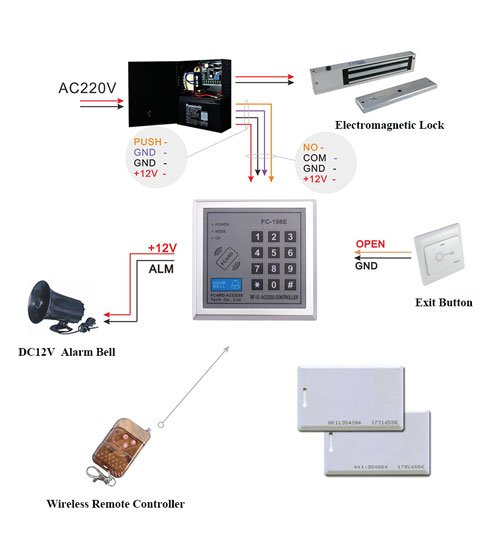

Wiring Diagram:
Wiring Port：
1. + 12V: Working power supply anode, input range: DC9-13.8V
2. GND: Working power supply cathode, signal common ground
3. NO: Relay normal open point, current load capacity DC10A / 30V
4. COM: Relay common point, current load capacity DC10A / 30V
5. NC: Relay normal close point, current load capacity DC10A / 30V
6. OPEN: Exit Button, low level unlock
7. DOOR: Door status switch, connected to magnet, low level represents door shut
8. ALM: Alarm output port, low level there is alarm, current load 100ma.
9.WGO: Wiegand 26 output data line (data 0 )
10.WG1: Wiegand 26 output data line (data 1 )
11. BELL: Connected to doorbell
Indicator Light:
1. POWER: Power indicator, there is electric when lit.
2. MODE: MODE long bright indicates the administration state
3. OK: OK button glisten indicatees normal operation condition
System Functions:
Card-reading door opening, password opening door, card plus password door opening, wireless remote door opening, data backup, data recovery, multi-door data copying, anti-detection opening, issuing self-editing card, master card issuing, full card opening, full card opening and automatic registration, anti-break door alarm, door open timeout prompt, external doorbell, external card reader, fire alarm linkage, door normally open, self-recovery management password, multi-mode card issuance, multi-mode card deletion, door sensor alarm, offline operation.
Advantages:
Build in ID/IC card double circuits
Support wireless remote controller to open door
External connect Wiegand card reader and realize read card to enter/exit
21,000 data capacity, can many people use
Build in connect opposite protection， more safety
Support normally open/close setting
support password detection protection, prevent others detect the password
Support unlock by card、password、remote controller、card+password、remote control + password
Have doorbell button
Data encryption, password verified
Accessories:
Device Type Description：
FC-198E: Supports EM4100 card with 1000 user capacity.
FC-198M: Supports MIFARE1 with 1000 user capacity.
FC-198H: Support EM format ID card, 1000 user capacity.
FC-198E21: Support EM format card, 21000 user capacity.
FC-198M21: Support MIFARE1 format Mifare card, 21000 user capacity.
FC-198H21: Support HID format ID card at the same time, 21000 user capacity.
(All the above models support: password opening, card + password opening, remote control, mother card issuing, data backup and other functions.)
Structure Diagram:
Product Advantages:
1. Keypad issue card, no need computer
2. Support card, password or unlock by card + password
3. ID card, Mifare card, HID card can be select
4. Automatic decoding to identify the wireless remote control signal, unlock by remote controller
5. Support external to connect Wiegand card reader, achieve reading card to enter/exit
6. Innovative any card unlocked + auto registration mode, improve efficiency
Compatible with FCARD one card pass management system. Support: Access Control System, Offline Access Control System, Time Attendance Access Controller, Guard Tour, Consumption Machine, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management, to realize one card pass management system with one card and one database.
