IR access controller is an one card pass product that uses infrared remote control to program and issue cards. Infrared access control uses infrared remote control to issue cards, delete cards, and set parameters. You can also issue cards, delete cards, and set parameters through the master card.

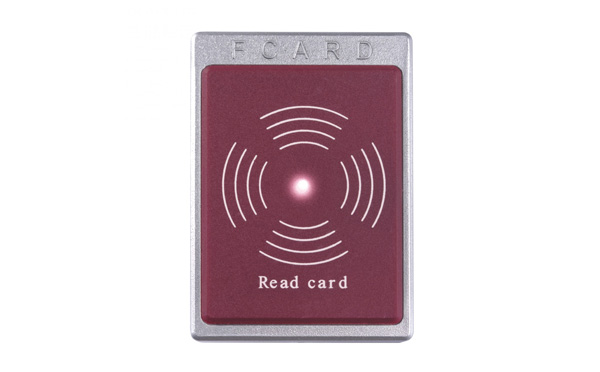

FC-103E/M IR Access Controller
IR access Controller is an access controller product that uses infrared remote control to program and issue cards. This product uses infrared remote control to issue cards, delete cards, and set parameters. You can also issue cards, delete cards, and set parameters through the mother card. FC -103 series IR access controller adopts non-volatile memory chip, built-in EEPROM memory can independently store 21,000 user capacity (default support 1000 user capacity), power failure will not lose data. The FC-103E can be issued or deleted through the remote control or the mother card. Commands such as issuing and deleting the card can be completed through the infrared programmer.

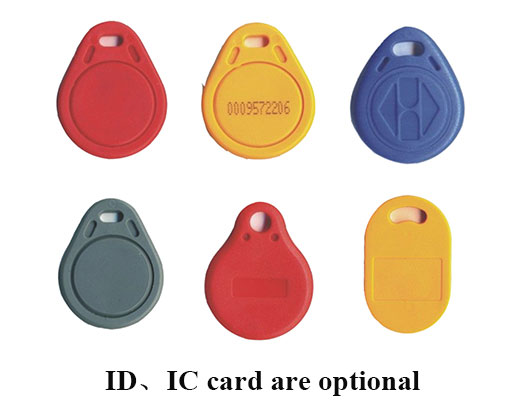

IR access control supports ID card or Mifare card as the key to open the door. If you use ID card, you can customize with us with "firewall" function. (Access control firewall is a function used to identify ordinary cards and duplicate cards and intercept duplicate cards. Through the firewall function, we can prevent the card from being duplicated and then opening the door)
The IR access control FC-103 series access controller is an access control product specially designed for residential quarters, school dormitories, rental houses, etc. It adopts new access control technology, independent control, storage, and identification units. It can identify, store, and door lock monitoring, anti-theft alarm and other functions.
(The FC-103M that supports Mifare card can support reading Mifare card, CPU card, NFC card, Android NFC mobile phone, UnionPay card, second-generation and third-generation Identification card, Yangchengtong...in one.)
Product Advantages:
1. The appearance of the heartbeat indicator is more beautiful and exquisite.
2. Newly added memory automatic expansion technology, as long as you replace the memory, FC-103 will automatically recognize the memory size and automatically expand the storage capacity (no need to return to the factory for expansion).
3. The automatic data backup function can effectively prevent various problems caused by data loss, and can also be used to copy data to other FC-103 to reduce repeated card issuance.
4. The new firewall can identify which cards are copy cards, so as to automatically intercept and ensure safety.
Working Voltage: DC 9-13.8V
Working Current: < 120mA
Working Temperature: -0℃- +65℃
Working Humidity: 10-90%
Reading Speed: < 0.2s
Reading Distance: 0-80mm
Control Output: dry node relay output, max current is 5A
User Capacity: 1000 (Can be extended to 21000 groups)
Exit Switch: Support
Enter/Exit Reading Card: Support
Door Sensor Alarm: Support
Fire Linkage: Support
Admin Card Manage: Support
Data Backup: Support
Wireless Remote Control: Support
Alarm Output: Support
Offline Use: Support
Wireless Remote Control: 315MHZ wireless remote controller unlock
Issuing Device: IR remote controller, admin card
Size: 85Lmm, 59.5Wmm, 22.5Hmm

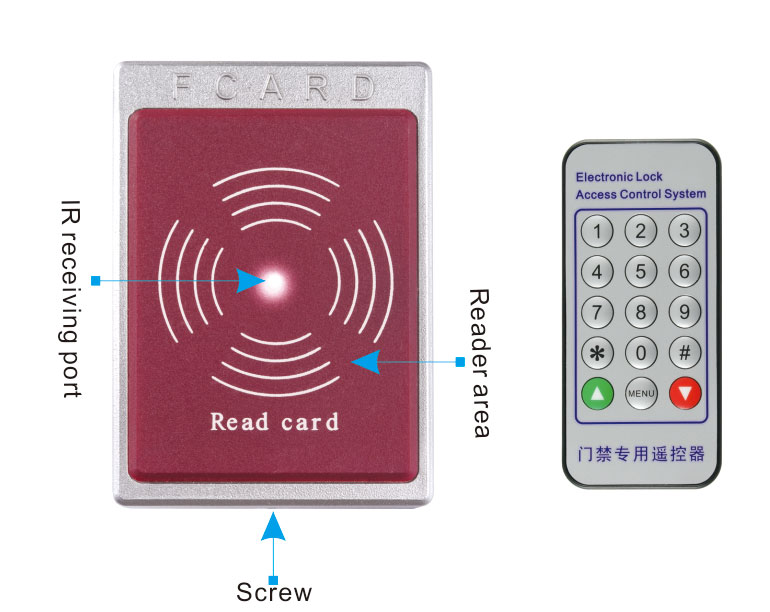

Appearance:
Function:
1. Support infrared remote control management: can issue and delete cards, set parameters, and program functions through infrared remote control.
2. Supporting master card (management card): issuing and deleting cards through master card.
3. Support large capacity: EEPROM memory is used, which can independently store 20,000 sets of card data (standard 1,000 sets) or password data.
4. Support automatic expansion technology: automatically identify storage size and expand storage capacity.
5. Support automatic backup function: effectively prevent data loss. Other FC-103 series infrared access control data can also be copied to this model of device to reduce the trouble of repeated card issuance.
6. Support anti-detection lock, fire alarm/bandit alarm prompts, full card opening, automatic card reading, card issuing and deleting.
7. New functions: data backup function, multi-door data copying, master card issuing and deleting card, self-numbering card issued by room number, automatic compatibility technology of large and small memory, anti-ID copy card technology.

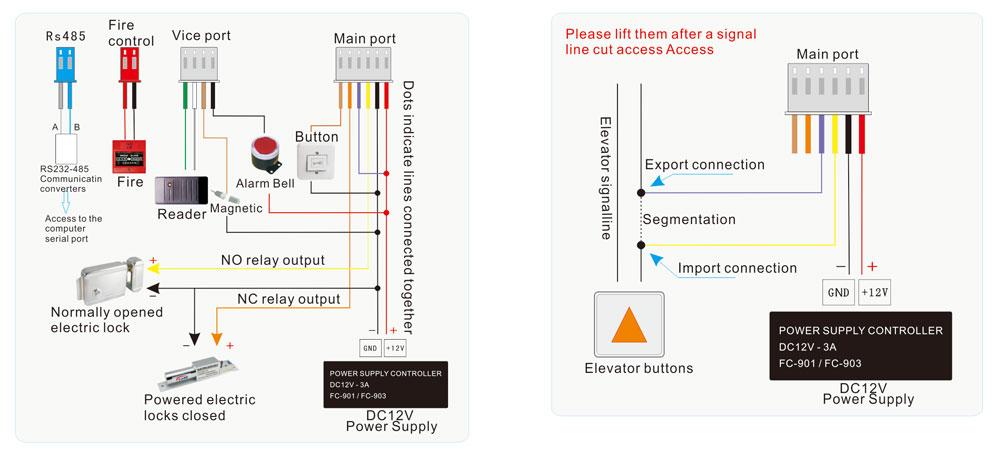

Wiring Diagram:

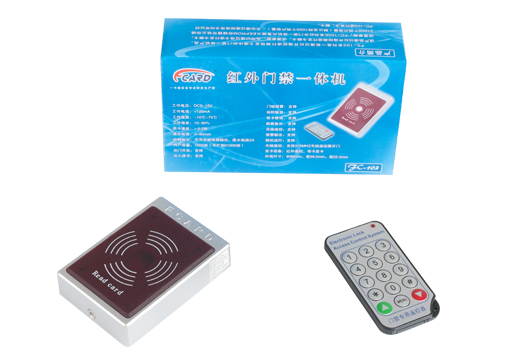

Accessories:
Access Control IR Remote Controller
Advantage:
1. Heart light design, more beautiful and exquisite.
2. Add memory's auto storage expansion(no need go back to factory expansion)
3. Support automatic backup: effectively prevent data loss. Also can copy other FC-103 access controller data on this device, reduce repeat to issue card.
4. New firewall, you can identify which cards are copied cards, thereby automatically blocking security.
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
