FC-3882 time attendance access controller is mainly divided into two models: FC-3882E and FC-3882M, FC-3882E supports EM H4100 format compatible ID cards, and FC-3882M supports MF1 format compatible Mifare cards.

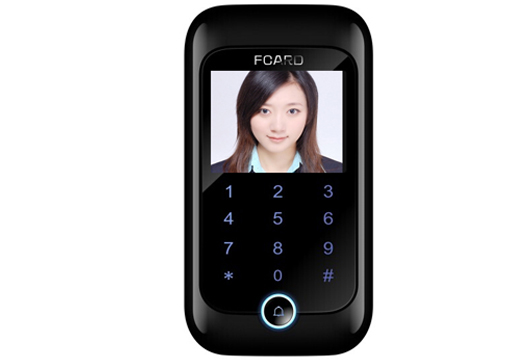

FC-3882 Time Attendance Access Controller
FC-3882 series time attendance access controller is a multi-functional time attendance access control device specially designed for offices, factories, schools, institutions, etc. This model has multiple functions and a wide range of applications. In recent years, it has been favored by many users. FC-3882 series are mainly divided into two models: FC-3882E and FC-3882M. FC-3882E supports EM H4100 format compatible ID cards, and FC-3882M supports MF1 format compatible Mifare cards.
Card Reading Parameters: EM125KH / Mifare 13.56MHZ
Reading Speed: 0.1s
Power Supply: DC9-14V(Standard DC12V)
Current: < 200mA
Working Temperature: -10~70
Working Humidity: 10% to 90%
Display Color: Green/Blue/White LCD59 x 49DOTS
Stored Data: 2500 people, 25,000 records
Communication Way: RS485/communication distance 1200 meters/baud rate 19200
Drive Output: 7A Relay Output COM, NO, NC
Size: 158 x 85 x 21mm
Function:
FC-3882 offline time attendance access controller supports 2500 users, can cycle to memory 24500 card records and alarm records. 32 time periods/64 time groups/16 applications/8 holiday types/card validity/card passwords(6 digits numbers), password/card/password+card to open door are optional, support safety password and supervisor password, support remote control and alarm function: opened timeouts, closed timeouts, break alarm, tamper alarm, bandit alarm, fire alarm etc.
With FCARD3500 software, FC-3882 supports dynamic electronic map, real-time understanding of the operation of each device, showing whether each door is open or not, whether there is a fire alarm or police warning, you can open the door remotely through the map. The electronic map prompts the card reading details in real time.
The FCARD3500 software management system can support the function of card reading and photo comparison. The photos taken by the card reader are compared with the original person, and it can be recognized whether there is a card reader for attendance and whether it is the person reading the card. It can effectively eliminate the replacement of card reading attendance and other abnormal situations.
FC-3882 is equipped with public short message and personal short message publishing functions, and 16 alarm points can be set at the same time, and the alarm supports working day selection. Built-in clock correction parameters can ensure that the real clock is accurate for a long time. It can be connected to the Internet (up to 250 units) or offline. The longest communication through RS485 network can reach 1200 meters.
Interface:
A set of built-in card reader (EM card or Mifare)
One set of relay output
A set of WIEGAND26 card reader interface
A group of door sensor signal access
One set of exit switch access
One set of alarm output interface
A group of fire alarm access
A set of doorbell interfaces
A set of RS485 communication interface

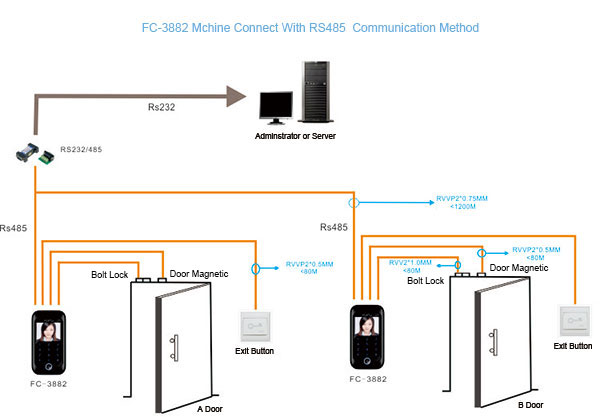

Wiring Diagram:
Features:
Password to open the door, time attendance access control, break alarm
Card reader to open the door, Chinese and English display, Electronic map
Wrong line protection, pre-full prompt, name display
Multifunctional time attendance access controller
New personal and group SMS messages
Support the latest FCARD3500 system software
Support Chinese and English display, card reader display name
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendnce access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
