The FC-R55M long range card reader supports a set of Wiegand26, 34 outputs and a set of RS485 data output. It can support China Mobile, China Unicom or Telecom School News Server, so that students can automatically read cards and notify parents when they enter and exit the school.
The long range card reader is completely independently developed by Fcard Electronics. It has a variety of communication ports, including common RS232, RS485, WIEGAND26/34 on the market, and a built-in Ethernet master for data transmission. Provides a convenient tool to connect to the Ethernet, and also has the current popular TCP/IP industrial fieldbus communication method to meet the needs of large-scale personnel management (such as mine personnel positioning).

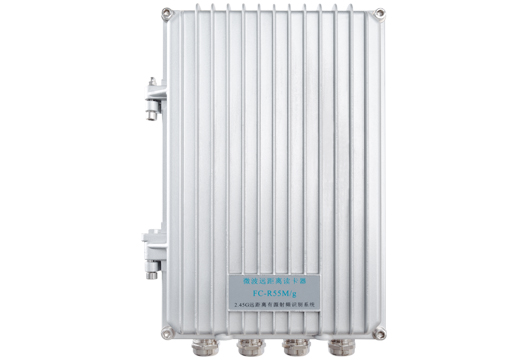

The long range card reader FC-R55M is a 2.45G Bluetooth dedicated card reader developed for schools, logistics, and non-stop charging.
The FC-R55M long range card reader supports two groups of Wiegand26, two groups of relay output output and one group of RS485 data output. It can support China Mobile, China Unicom, or Telecom School Communication Server, so that students can automatically read cards to notify parents when they enter and leave the school. The reading distance of this card reader is adjustable from 0 to 180 meters, supports reading 1000 cards at a time, and supports directional antennas and omnidirectional antennas. It also supports the card reader of the parking lot.
Working Voltage: DC12V
Working Current: < 500mA
Ground Control: support
Offline Operation: support
Ground Control: support
Offline Operation: support
Working Temperature: -0℃-+65℃
Working Humidity: 10%-90%
Working Frequency: 2.4GHz
Card Reading Speed: 0.5s-60s
Communication Interval: 0.5s-60s
Card Capacity: 55000
Card Reading Records: 220,000
Card Reading Distance: 4 meters, 15 meters, 55 meters, 100 meters, 180 meters
Read Card Once: read 1000 cards at a time
Main Doard Size: length 300mm × width 200mm × height 90mm
Card Reader Type: FC-L2.4 compatible format Bluetooth card
Card Battery: can be used for two years (you can replace the battery by yourself)
Working Mode: access controller mode, pure card reader mode
Data Rate: 19200bps (RS485), 10/100M (TCP/IP)
Relay: 1 group of access control relay output, 1 group of alarm relay output
Communication Mode: RS485: 1 group, TCP/IP: 1 group, Wiegand26/34 card reader: 2 groups
Reading Distance: Near (0-8 meters), medium (0-20 meters), far (0-120 meters) three modes are available
Reading Distance: Near (0-8 meters), medium (0-20 meters), far (0-120 meters) three modes are available
Card Battery Life: 2 years (card sending cycle is 0.5 seconds) to 10 years (card sending cycle is 30 seconds)
Card Reading Capacity: 1000 sheets/second (pure card reader mode), 20 sheets/second (access controller mode), swiping cards without deceleration within 60 hours
The superior anti-interference and lightning protection design of the FC-R55M long range card reader can not only be used in general living environments, but also fully adapt to the requirements of industrial environments. The long-distance card reader can easily perform a variety of electronic tags The "card reading" operation fully meets the general needs of customers for RFID products. Without opening the shell, the distance can be adjusted directly by sending commands. The reader is powered by 9-12V DC, with stable performance, reliable work, strong signal transmission ability, and a service life of up to 15 years, which can meet the harsh industrial environment. FC-R55M series long range card reader's leading technology, full industrial design and outstanding cost performance make it have an excellent competitive advantage in the fields of vehicles, logistics and personnel tracking and identification, and create new value for customers.
The composition of the long range card reader mainly includes: a wireless receiving unit, a data processing module, a DC stabilized power supply, and an antenna.
Applications:
1. Hand Free access control for parking lot vehicles.
2. Tunnel safety management system.
3. Positioning management system for underground personnel in coal mines.
4. Driving school test system.
5. Automatic recognition system of motor vehicle electronic license plate.
6. Highway ETC electronic toll collection system.
7. "Benchmarking" automatic management system for bus entry and exit.
8. Home-school communication system for students to enter and exit school safely.
9. Staff meeting reporting system for important meetings and events.
10. Automatic examination system for personnel entry and exit of enterprises and institutions.
11. Urban pet tracking and management.
12. Wild animal tracking and management.
13. Zoo management.
14. Inspection of warehouse power device.
15. Intelligent maintenance of gas pipelines and transformer device.
16. Tracking of high value-added products.
17. Process management of factory production line.
18. Tracking and management of containers such as storage pallets.
19. Container transportation in sea, water, road and railway.
Product Name:
Long range card reader, Bluetooth card reader, 2.4G long range card reader, long range card reader, Bluetooth long range card reader, remote access control board.

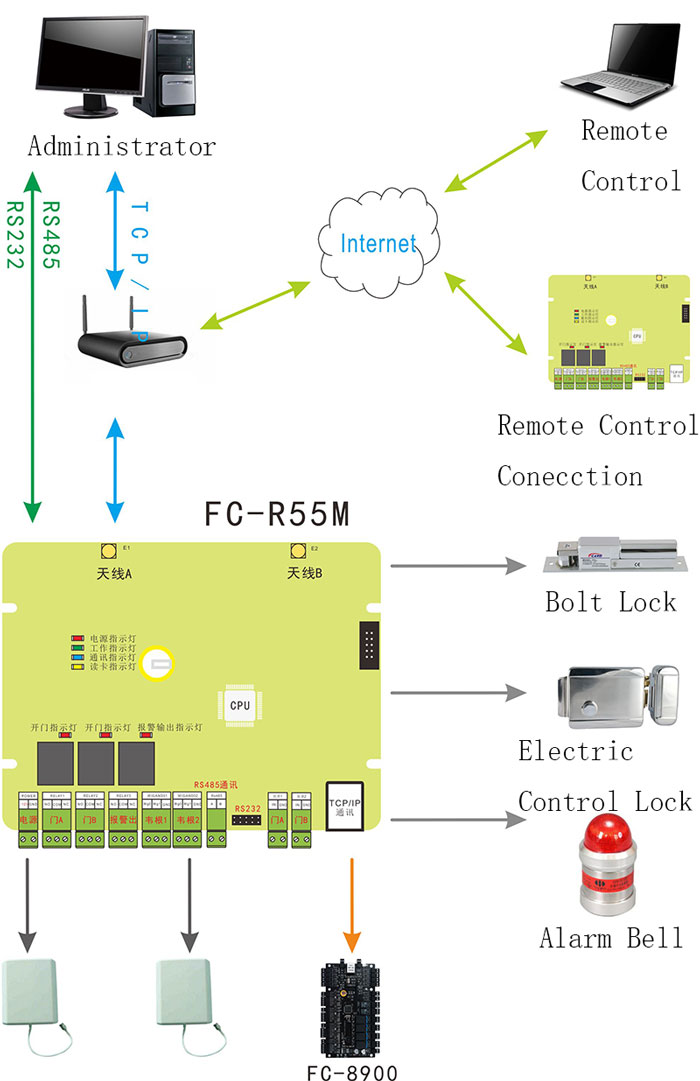

Long range card reader system diagram:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
