Electric control lock is use of electric control, key and manual to opened, with high security, and prevent that someone open the door without key after anti-lock, besides,you can remote the lock from inside.
Electric control lock is use of electronic control, key and manual to opened, with high security, and prevent that someone open the door without key after anti-lock, besides,you can remote the lock from inside.
This kind of electric control lock is suitable for residential, especially public gates of high-rise residential, offices, schools, hotels, factories and warehouses and other occasions, it also can be used with the electronic control security door.

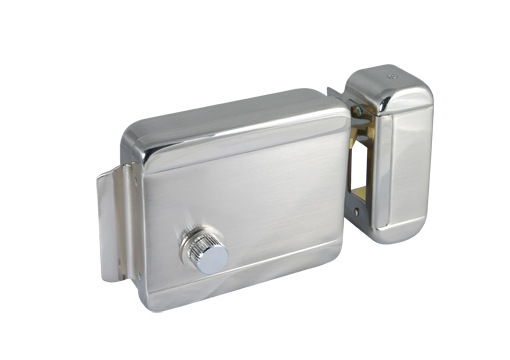

Model: FCL-202
Working voltage: DC12V or 18V
Life time: more than 500,000 times
Weight: 1.25KG
Size: 130x150x35mm
Standard Setting: electric control or key
Warranty: 1 year
Application:Applied to all type doors
Note:
When lock lubricated, the electric control lock can take some pencil powder inside the lock, it is forbidden to inject various oil in the lock.
This kind of electric control lock is forbidden to installation weld, the high temperature will influence coil part damage.
If the electric control lock isn't open the door after connecting the electricity, please checking the door installation situation or take the lock to the dealer of maintenance.

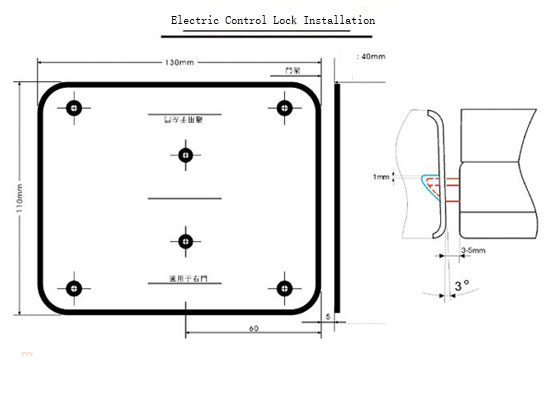

Wiring Diagram:
