Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
180KG Single Door Electromagnetic Lock
All series electromagnetic locks include one year warranty and are availabled in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with all access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/300mA 24V/150mA
Humidity: 0-95%
Holding Force:180kg(300Lbs) Direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 1.2kg
Lock: 170mmL x 35mmH x 21mmH
Iron Plate: 130mmL x 33mmH x 9.3mmH
Warranty: 1 year
Applicable: glass door, wooden door, fireproof door

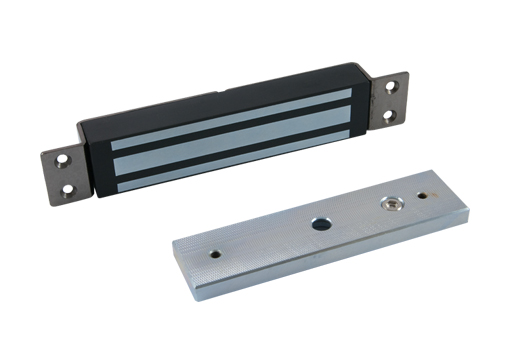

180MS Electromagnetic Lock With Mortise Mount
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/300mA 24V/150mA
Humidity: 0-95%
Holding Force:180kg(300Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 1.2kg
Lock: 190mmL x 32mmH x 21mmH
Iron Plate: 130mmL x 33mmH x 9.3mmH
Warranty: 1 year
Applicable: glass door, wooden door, fireproof door
180KG Double doors Electromagnetic lock
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/300mA 24V/150mA
Humidity: 0-95%
Holding Force:180kg(300Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 1.2kg
Lock: 340mmL x 35mmH x 21mmH
Iron Plate: 130mmL x 33mmH x 9.3mmH
Warranty: 1 year
Applicable: glass door, wooden door, fireproof door

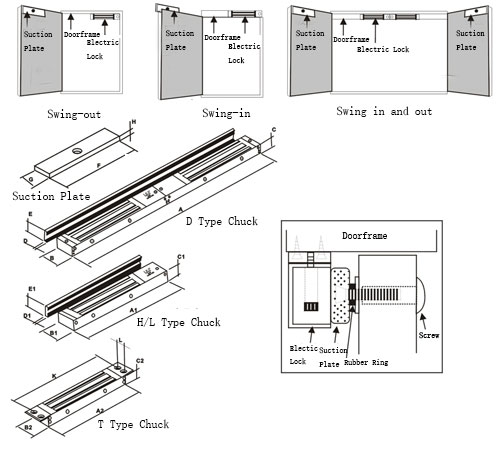

Installation Diagram:
Bracket for the 180Kg/280Kg/350Kg/500Kg Series magnetic lock special design for out-swing narrow door frame door project to install the magnet, with 5 adjustable holes to suit different door frame.

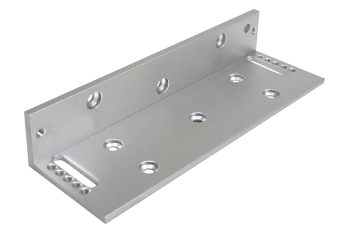

180L Bracket
Parameters:
Item Name:180 L Bracket
Weight:0.32Kg
Size: 250*50*30mm
Suitable for: 180 series ElectroMagnetic Lock.

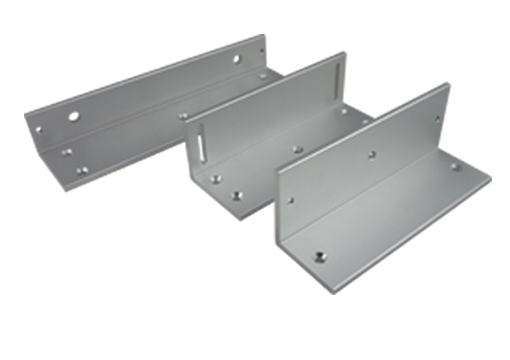

180ZL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Weight:0.61Kg
Size: 168*50*30mm
Suitable for: 180 series ElectroMagnetic Lock.
180UL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Weight:0.61Kg
Size: 168*50*30mm
Suitable for: 180 series ElectroMagnetic Lock.
