Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors,glass doors,metal doors, metal doors, including framed doors, hollow framed doors and frameless doors.

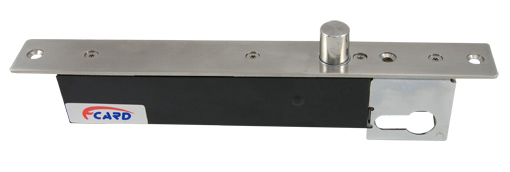

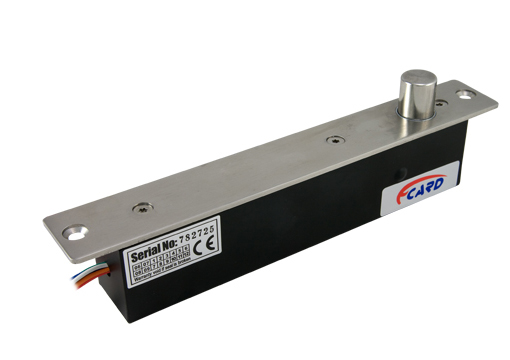

FCL-700A Electric Bolt Lock
Electric bolt lock is "FCARD ELECTRINIC" for the public security access control system with high quality electric locks, this series is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 ma (starting moment 900 mA).
Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors,glass doors,metal doors, metal doors,including framed doors,hollow framed doors and frameless doors.
Working voltage: DC12V+10%
Operation Temperature: -10 to 55℃
Humidity: 0-95%
Durable Design: Pass 200,000 testing
Weight: 1.3kg
Delay:0、3、6、9s adjustable
Low Consume: low temperature
Distance: within 10mm
Weight: 1.3KG
Lock Tongue: stainless steel, bear 2000KG pressure
Lock body: 260(L)*30(W)*48(H) mm
Application: Wooden, Glass and Metal Door
Low Consume: low temperature, firm and durable
Safe Style: Power On Locking, Power Off
Unlocking

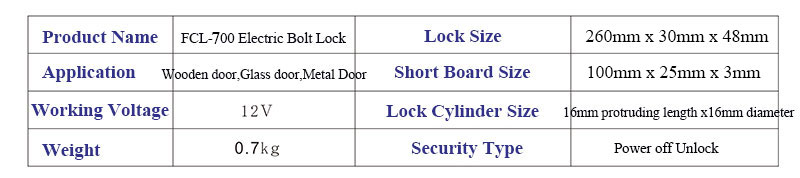

Product Size:
Dimension:
Features:
1. Adopt integral aluminum alloy die-casting shell, it is safe and simple.
2. Working voltage 12V, starting current 950mA, working current 150mA.
3. Power on locked, power off unlocked.
4. Can be used with card reader, fingerprint machine and building intercom.
Functional characteristics:
1. High safety, outside interference after locked, damage prevention, more stable, more durable.
2. Use stainless steel cover piece.
3. With delay function, you can set the door lock delay time: 0s, 3s, 6s.
4. Stainless steel lock tongue, more firm, using point control magnetic force to open, closed automatic locked.
Delay Adjust:
Wiring Diagram:

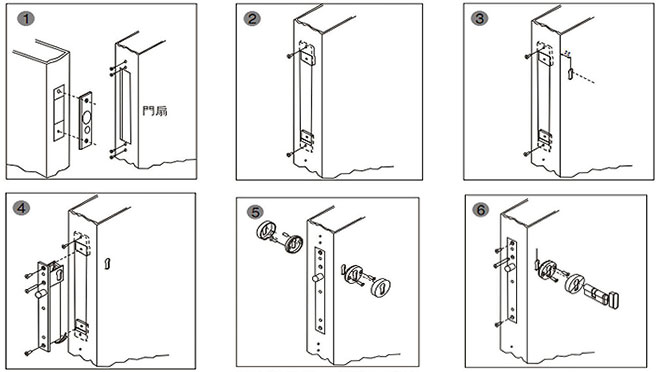

Installation Diagram:
