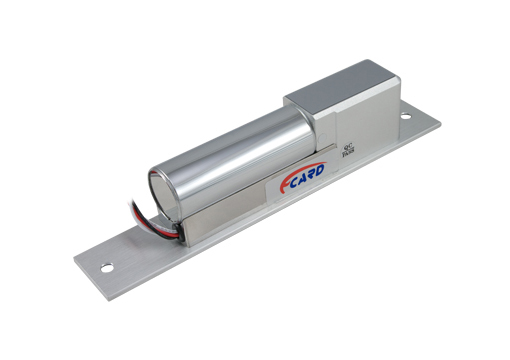

FCL series bolt lock is "FCARD ELECTRINIC" for the public security access control system with high quality electric locks, this series is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 ma (starting moment 900 mA).

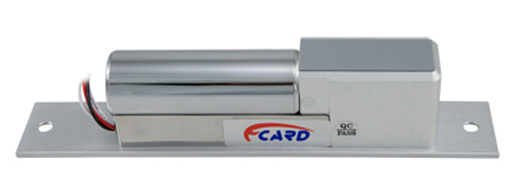

FCL-200 Electric Bolt Lock
FCL-200 Electric Bolt Lock is "FCARD ELECTRINIC" for the public security access control system with high quality electric locks, this series is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 ma (starting moment 900 mA).
Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors,glass doors,metal doors, metal doors,including framed doors,hollow framed doors and frameless doors.
Working voltage: DC12V
Operation Temperature: -10 to 55℃
Humidity: 0-95%
Durable Design: Pass 200 thoudsand testing
Weight: 0.7KG
Low Consume: low temperature, firm and durable
Safe Style: Power Off Unlock
Starting Current: 900mA (Locked moment) 100mA (Normal)
Lock Tongue: stainless steel, bear 800KG pressure
Application: Wooden door,Glass door,Metal Door,Framed door,hollow frame door,frameless door
Lock Size: 205L x 35W x 40H mm
Short Board: 90L x 25W x 2H mm
Lock Cylinder: 16mm protruding length x16mm diameter
Warranty: Anode lock series products, providing two years of quality assurance
Application: Wooden door,Glass door,Metal Door

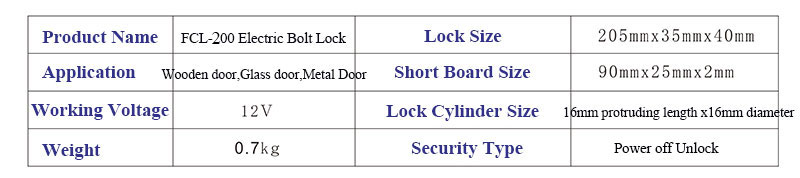

Product Size:
Features:
1. adopt integral aluminum alloy die-casting shell, it is safe and simple.
2. working voltage 12V, starting current 950mA, working current 150mA.
3. Power on locked, power off unlocked.
4. Can be used with card reader, fingerprint machine and building intercom.
Functional characteristics:
1. High safety, outside interference after locked, damage prevention, more stable, more durable.
2. Use stainless steel cover piece .
3. With delay function, you can set the door lock delay time: 0s, 3s, 6s.
4. Stainless steel lock tongue, more firm, using point control magnetic force to open, closed automatic locked.
Delay Adjust
Wiring Diagram:
