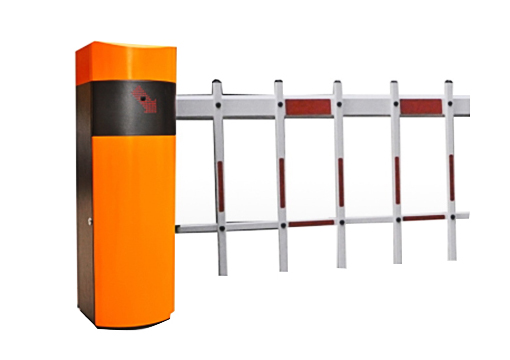

FCD-01C fence barrier gate use surface painting technology to make the product elegant and durable. Equipped with a ground sense support and a socket, can be used after the ground sense plug which gently solve the wiring problems, equipped with an electric leakage protective switch, and is safer to use. The appearance of the case is unique and novel. It is simple and elegant. Made with various colors. Use balance spring,can adjust the springs quantity according to the arms length, make the accessories more concise. Special blancing structure design makes the barrier up and down straightly.
Open Time: 6S
Arm length: Max:5m
Arm Size: 5X0.1X0.05m
Working voltage: 220V/110V
Insulation Class: B
Motor power consumption: 120W
Lifetime: >5,000,000
Working Temperature: -30℃—75℃
Weight: 60KG
Protection Class: IP55
Outer Size: 1030*320*330
Product advantage:
(1) chassis
1. humanized appearance line design, simple、generous and beautiful.
2. use rust treatment and imported orange lines paint, make the chassic still have extended rust prevention time、anti UV and exposure in the sun is not easy to change color although in the outside.
(2) movement
1. adopt the most stable non constant speed operating mechanism to make the brake lever start slowly, run fast, slow down, and eliminate the chattering caused by the running and stopping of the brake rod.
2. use high sensitivity limit switch, all the process is smoothly without any noise and shaking.
3. professional wave box reducer with aluminum shell, low noise, fast heat dissipation.
4. the motor is equipped with intelligent overheating protection system, it control the temperature rise of the motor under frequently use, so that the motor is not easy to burn.
(3) Barrier gate
1. the barrier gate permanent 90 degree angle movement mechanism, avoids 360 degrees brings the accident to occur.
2. The fast arm will not hurt the car, if the car with 80 kilometers per hour, when it hit the arm, the host still can be used.
3. The protection part of the anti smashing arm is manufacture by soft colloidal materials, when people opention error mechanical failure etc problems, can avoid to hit cars and persons.
(4) Control system
1. use digits chip technology,anti drop, ground sense, Mifare interface, good stability, error probability is zero, especially with time delay protection function, with double control effect.
2. with up/down arms delay protection,effectively prevent the limiter fault, protect the motor.
3. with anti smashing function.
Feature:
Industry-standard design, patent protection products.
Microprocessor design, high integration system, strong logic function.
Integrated motor has high reliability and long service life, stable running, low noise.
Integration of motor and speed reducer design, belt drive and maintenance free.
With manual control, button control, remote control and computer control etc.
Optional infrared or vehicle detector, it has "Automatic Dropping When Car Passed By", "Anti-pound", etc.
Box used advanced waterproof structure and anti-aging outdoor pensu processing, durable, never fade.
