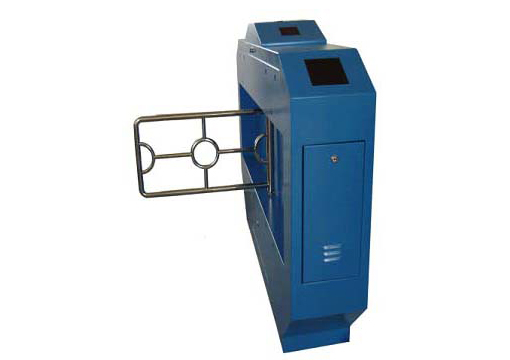

The non-standard swing turnstile is an intelligent channel management device researched, developed and produced by our company, by configuring different access control device, the intelligent control and management of the passage can be completed.
The non-standard swing turnstile is a channel management device developed by Fcard Electronics, its shell frame is made of high-quality stainless steel, and all internal components are rust-proof and anti-corrosive, which is durable. The swing arm is driven by a high-quality DC brushless motor, which features smooth operation, no jitter, and low noise. The swing turnstile can be equipped with different access control device to complete the intelligent controller and management of the passage.
Non-standard swing turnstile are beautiful in appearance, rust-proof and durable, and the system adopts standard electrical interfaces to the outside, which can easily integrate barcode cards, ID cards, Mifare cards and other reading and writing devices on the device, so as to provide orderly access for personnel civilized way of passing, and can prevent illegal people from entering and exiting, at the same time, in order to meet the requirements of fire exits, power outages and poles were dropped in emergency situations to organize evacuation. Cooperating with the ticket sales management system developed by our company, it can meet the needs of park automatic ticket checking.
Power Supply: AC220V ± 10V, 50Hz
Working Environment Temperature: -15℃—75℃
Swing Door Running Time: about 2s
Humidity: less than 95%, no condensation
Drive Motor: DC motor 30W/24V
Maximum Channel Width: <900mm
Passage Speed: 25 people/ min (tripod turnstile)
Communication Interface: RS485 electrical standard
Communication Distance: <1200
Input Interface: switching signal (COM port is ground)
Working Mode: Single/Bidirection (Adjustable)
Reading Way: Mifare card/ID card/ magnetic card/ bar code instrument etc.
Material: 304
Weight: 65kg
Color: stainless steel wire drawing or spraying, optional color
Size: 1200x280x990MM
Input Interface: +12V level signal or pulse width >100ms DC12V pulsing signal drive current >10mA
Suitable For: subway stations, terminals, tourist attractions, exhibitions, swimming pools, residential areas, enterprises, institutions, attendance, access control, consumption management, special channel control
Note: the color of the card reading area is optional (standard is blue)
Products Advantage:
1. The movement design is reasonable and reliable,noise is small,internal hydraulic device is automatically buffered,operation very stable,make the service life more long.
2. Have power off to dropping function, also can add remote controller to control, convenient for managing and dealing with unexpected events.
3. LED light with direction indication.
4. Can be set with "memory" or "without memory" (when set as "memory"), can be used for scenic spot which reading once time can pass many people.
5. With automatic reset function,means if not passed within setting time after get the privilege, it will auto cancel the prilege and restored to the locked state.
6. Waterproof, sunscreen, cold resistant, high temperature resistant.
7. With personalized installation interface, compatible with IC, ID card and other smart cards.
8. It has a unified and standard external electrical interface. It can be freely connected with all kinds of read-write devices, so that it is easy to integrate the system.
9. It can be expanded as an automatic identification system, access control, attendance, charging and other functions.
10. Can be used in conjunction with other types of channel products.
System Functions:
1. Use unique Geneva Wheel structure to realize the zero position locking and unlocking.
2. Whole system runs smoothly, with little noise and no mechanical shock.
3. It has the function of fault self checking and alarm prompt, which is convenient for user's maintenance and use.
4. It has many working modes are available, can be bidirectional reading to limit, also can one side to reading, the other side fobid passed, one side reading card, another side free passed, and the working mode of turnstile can be set by the control board button, without changing the mechanical structure.
5. Arms auto drop when power off , auto up when power on.
6. Remote control drop/up arms, to meet the users and fire security requirements.
7. It has a unified and standard external electrical interface.Can be connected with all kinds of read-write devices, which is convenient for system integration, and can realize remote control and manage by computer.
8. It can automatically count the people total quantity, and display bu LED.
9. With a clear pass indication function, indicates the user can passed or cannot passed.
10. With reading memory or without memory function,and users can according to their own needs to settings by access control board button
11. Software setting, can limit the persons' quantity,to meet the special requirements.
12. With automatic reset function. After the card is read, if the passer does not pass within the specified time, the system will automatically cancel the passer’s current pass access level, and the restricted pass time can be set by the administrator.
13. With anti drilling, anti climbing alarm function(Optional).
14. Auto shutdown / time out(time adjustable) can be adjusted.

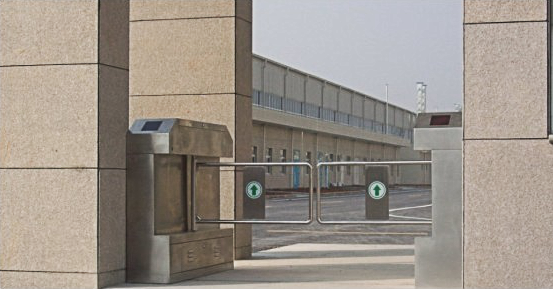

Applications:
Office locations: smart buildings, commercial buildings, government agencies, factories, etc.
Scientific and educational units: schools, colleges, institutes, libraries, etc.
Commercial service places: supermarkets, shopping malls, hotels, clubs, banks, etc.
Living place: residential area, community, apartment, dormitory, etc.
Transport stations: bus station, railway station, subway, airport.
Scenic area: scenic area, playground, theater, gymnasium.
