The electric door lock has voice anti-theft function, supports Mifare card, second-generation Identification card, residence permit, encrypted CPU card, etc. as electronic keys, and can realize three management methods: network management, offline management, and infrared remote control management.

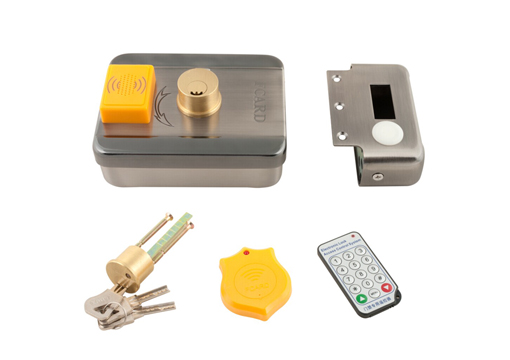

FC-989M offline voice output electric door lock is a new generation of multi-functional anti-theft door lock products. It adopts new card reading recognition technology and is developed by combining high-tech access control systems. It supports Mifare cards, second-generation Identification cards, residence permits, The encryption CPU card, etc., as an electronic key, can realize three management methods: network management, offline management, and infrared remote control management. The built-in large memory supports 80,000 records and 20,000 black and white lists. The product adopts the offline card writing and issuing mode, and the number of personnel registrations is unlimited.
Note: If you use computer management, please refer to the "Electric Door Lock" part of the software manual for detailed software operations.
Working Power Supply: DC12V/500MA
Reading Distance: 0-6cm
Working Temperature: ﹣0℃ to +65℃
Working Humidity: 20～95%
Reading Frequency: 13.56MHz
Networking: RS485
Users: 20,000 Black and white list (Quantity no limit when offline issue card)
Records: 80,000 ( 50,000 reading records, 10,000 event logs, 10,000 alarm records, 10,000 system records)
Size: 170*98*55mm

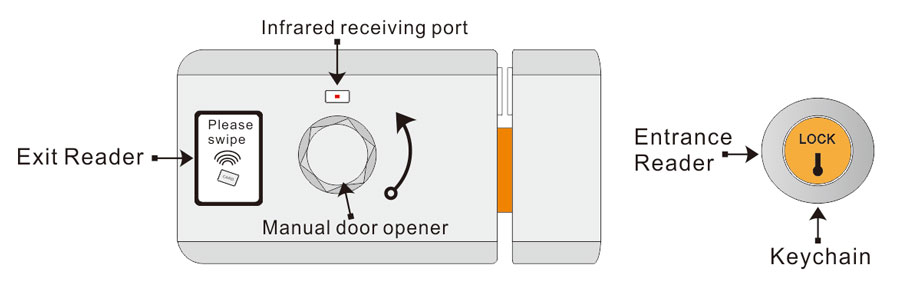

Appearance:
Wiring Connection Diagram:
Function:
1. Support 2 sets of card reader antennas (going out and getting started).
2. Support 1 set of voice speakers.
3. Support infrared programmer.
4. Support 1 set of exit switch.
5. Support 1 group of door sensor switch.
6. Support 1 group of doors and 2 control output.
7. Support 1 group of alarm output.
8. Support 1 set of fire alarm input.
9. Support 1 group of bandit alarm input.
10. Support 1 group of RS485 communication ports.
11. Support data initialization jumper.
12. Support a group of building intercom linkage interfaces.
13. Support 4-key remote control (A key to open the door, B key to arm, C key to disarm/unlock, D key to lock).
Instructions:
1. Login management status: Type "*" + "management password" + "#" Default management password: 1234.
2. Exit the management state: type "*" (in the management state, when you type "*", you will exit the management state. If it is under a certain lower-level operation instruction of the management state, you need to enter * * to exit the management state; in the management state the indicator light is shining, and the working indicator light becomes long on after exiting the management state.)
3. Listen to the equipment information: key in "MENU + #" (the electric lock will broadcast voice: device temperature, working voltage, time information, SN address, etc.)
4. The programmer opens the door remotely: In the non-management state, type "management password + #" (default management password: 1234)
Wiring Diagram:
Networking Structure:

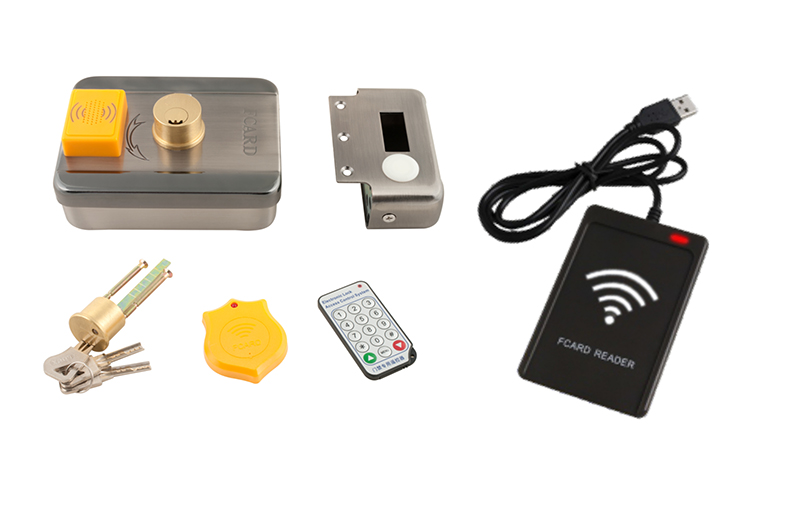

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
