Hello, we need the system connection diagram of FC-198E access controller, thank you!

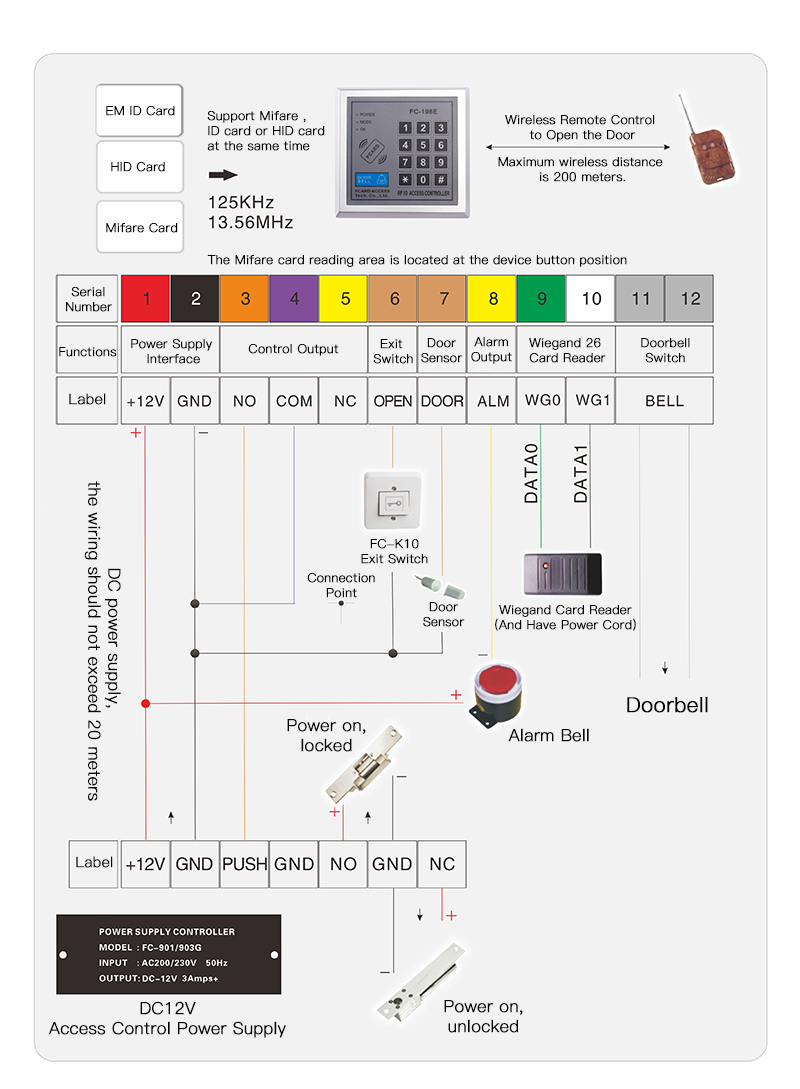

Hello, thank you for purchasing our company's FC-198E keyboard access controller, you can refer to the following pictures to connect:
If there is anything you don’t understand, you can ask us at any time and we will answer you in time.
