I have purchased your MC-5800 series product controller, I don’t know where the manual, please provide the connection diagram, thank you!
Hello, thank you for purchasing our company's MC-5800 series access control board products, you can refer to the following wiring diagram for wiring:
MC-5812R/T One door access control board wiring diagram:
AC220V AC power cord: It is recommended to use 3×1.5 square millimeters (or more) wire to prevent leakage, and the ground wire of the power cord is recommended to be grounded.
Electric lock wire: 2×1.0 square millimeter (or more) wire must be used, and the maximum length of the wire should not exceed 50 meters.
RS485 communication line: It is recommended to use 3×0.5 square millimeters (or more) wire, and it is recommended to use twisted pair, the maximum line length should not exceed 1200 meters, if the distance exceeds this distance, please add RS485 repeaters to extend the communication distance.
TCP/IP communication line: Please use a standard network cable, and the maximum length of the line should not exceed 100 meters.
Card reader cable: It is recommended to use 8×0.5 square millimeter (or more) wire, and the maximum length of the line should not exceed 80 meters.
Door sensor and exit switch wire: It is recommended to use 2×0.5 square millimeter (or more) wire, and the maximum length of the wire should not exceed 100 meters.
MC-5824R/T Two doors access control board connection diagram:
Wiring requirements:
AC220V AC power cord: It is recommended to use 3×1.5 square millimeters (or more) wire to prevent leakage, and the ground wire of the power cord is recommended to be grounded.
Electric lock wire: 2×1.0 square millimeter (or more) wire must be used, and the maximum length of the wire should not exceed 50 meters.
RS485 communication line: It is recommended to use 3×0.5 square millimeters (or more) wire, it is recommended to use twisted pair, the maximum line length should not exceed 1200 meters, if the distance exceeds this distance, please add RS485 repeater to extend the communication distance.
TCP/IP communication line: Please use a standard network cable, and the maximum length of the line should not exceed 100 meters.
Card reader cable: It is recommended to use 8×0.5 square millimeter (or more) wire, and the maximum length of the line should not exceed 80 meters.
Door sensor and exit switch wire: It is recommended to use 2×0.5 square millimeter (or more) wire, and the maximum length of the wire should not exceed 100 meters.

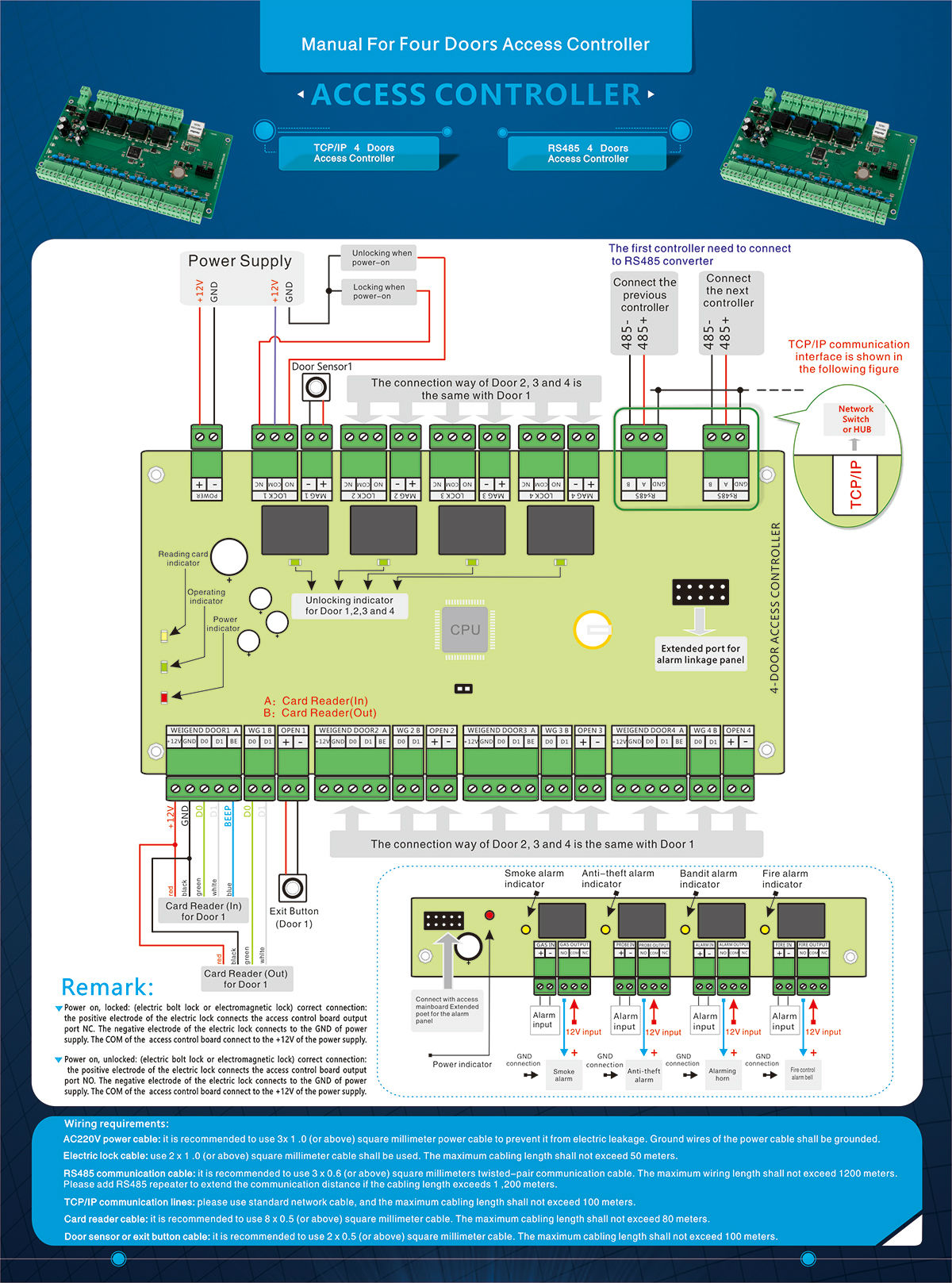

MC-5848R/T Four doors access control board wiring diagram:
Wiring requirements:
AC220V AC power cord: It is recommended to use 3×1.5 square millimeters (or more) wire to prevent leakage, and the ground wire of the power cord is recommended to be grounded.
Electric lock wire: 2×1.0 square millimeter (or more) wire must be used, and the maximum length of the wire should not exceed 50 meters.
RS485 communication line: It is recommended to use 3×0.5 square millimeters (or more) wire, it is recommended to use twisted pair, the maximum line length should not exceed 1200 meters, if the distance exceeds this distance, please add RS485 repeater to extend the communication distance.
TCP/IP communication line: Please use a standard network cable, and the maximum length of the line should not exceed 100 meters.
Card reader cable: It is recommended to use 8×0.5 square millimeter (or more) wire, and the maximum length of the line should not exceed 80 meters.
Card reader cable: It is recommended to use 8×0.5 square millimeter (or more) wire, and the maximum length of the line should not exceed 80 meters.
Door sensor and exit switch wire: It is recommended to use 2×0.5 square millimeter (or more) wire, and the maximum length of the wire should not exceed 100 meters.
You can contact our dealer to get the manual of MC-5800 series access control board. If you still have any questions, you can consult us at any time and we will solve it for you in time.
