HD
Screen
6 Kinds of
Subject Styles
8 Groups of
Anti-theft
Monitoring
Function
TCP/IP
Communication
Extension
Intercom
POE
Power Supply
Video
Intercom
Lift
Management
Online
Upgrade
WIFI
Communication
Touch
Screen
Provides 500 lumens of brightness
Images can be seen both indoor and outdoor
Regardless of the size chosen,
it has consistent functionality
Support 800MHz Main Frequency,
Built in 128M DDR2 Memory
Specialized AI Chips for Face, Fingerprint, Palm Vein,
QR Code, Password, Mifare Card, Video Data, etc
The recommended communication distance between TCP/IP and the
switch is within 80 meters, and the WIFI distance is within 20 meters.
Support multiple communication protocols,
including HTTP, MQTT, WebSocket, TCP, UDP and WEB
Can directly open the WEB page through the IP address;
support personnel, department, equipment parameters,
record managements and other operation settings
When it is inconvenient for users to
manage their devices through a computer,
device provides a touch screen menu management function,
which can directly authorize personnel to open doors,
time attendance and taking elevators
fast and real-time intelligent recognition of 68 weather
conditions including sunny, cloudy, rainy, snowy, foggy, etc.

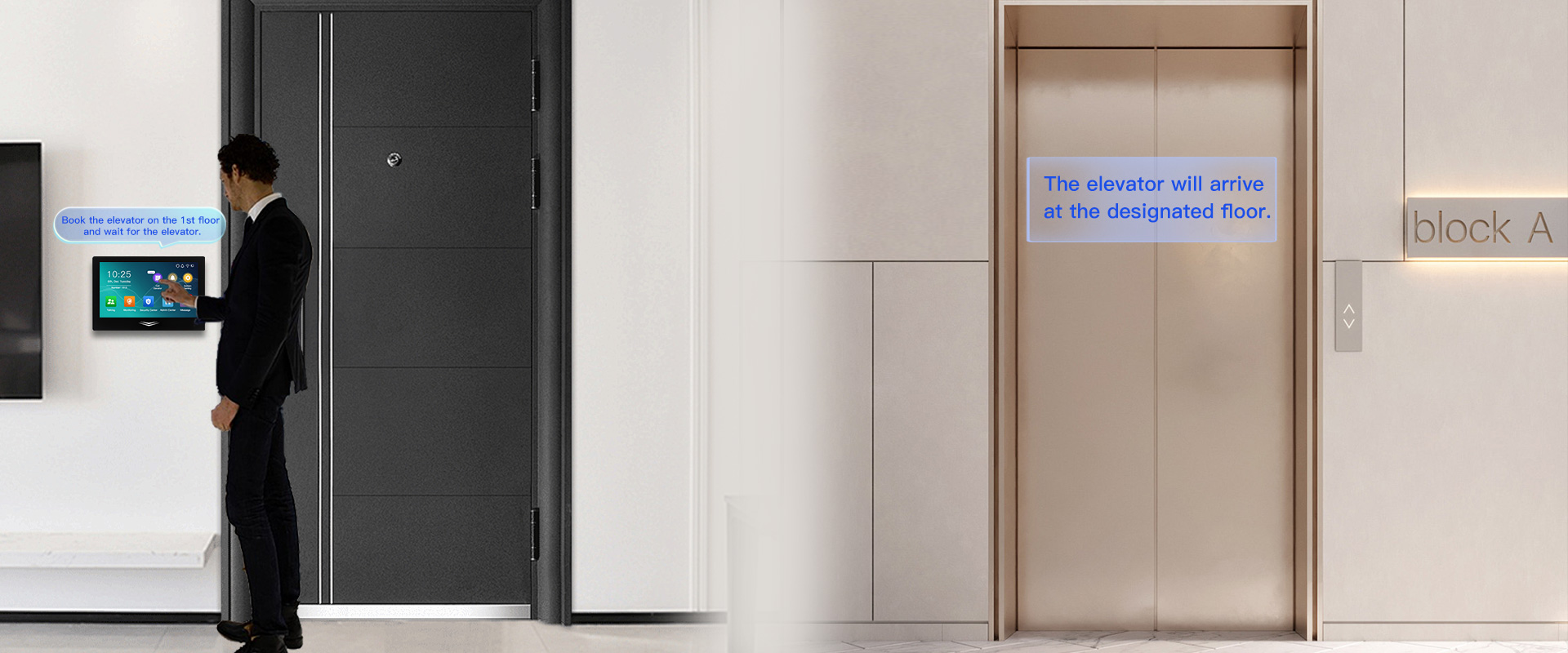

Can click on the indoor unit to call the elevator in advance,
and the elevator will arrive at the designated
floor according to the user's needs

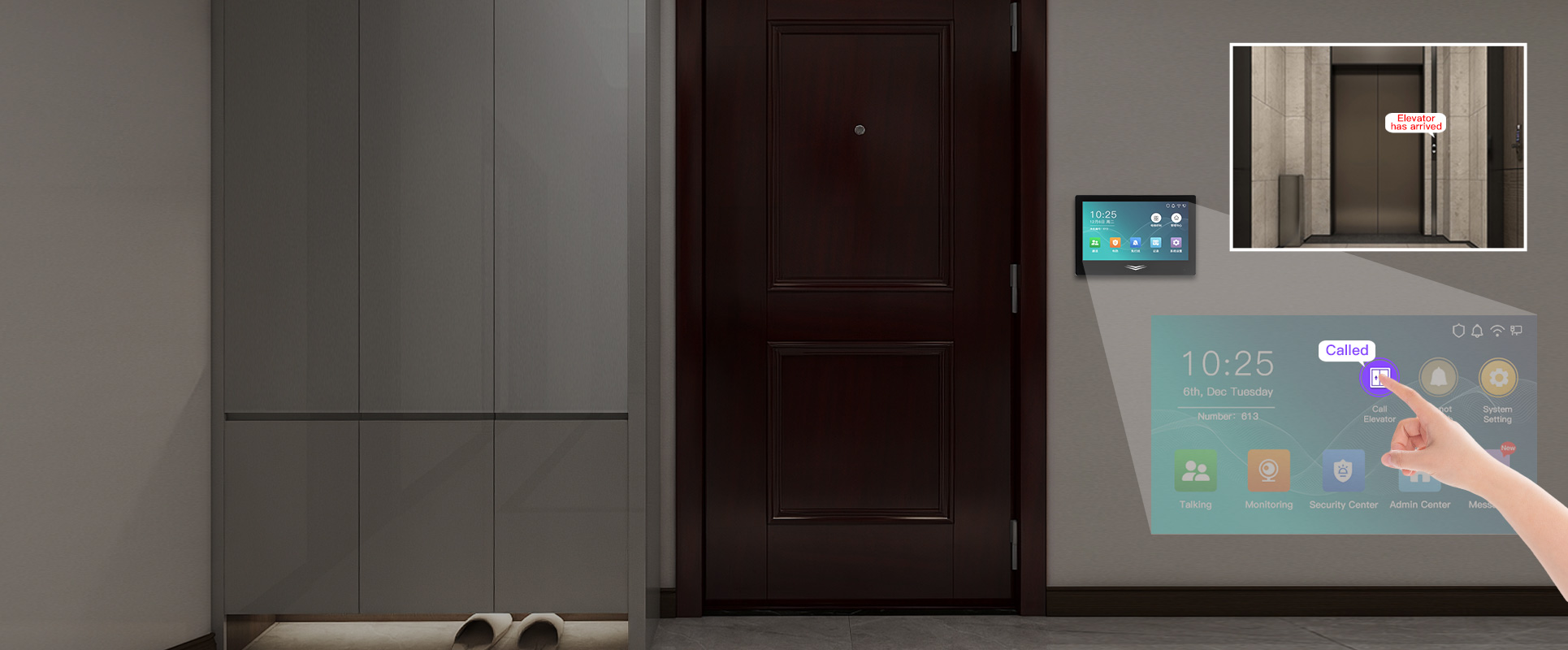

Call the elevator through the indoor
unit to any designated floor.
Suitable for various situations that require alarm
High performance, reliability, and sensitivity
Realtime monitoring and issuing alerts to ensure your safety
Support Customize
Multiple National Languages
Main Uses:
Indoor Unit Intercom
Working Voltage:
DC12V（9 ~ 14V）
Working Current:
500mA
Working Environment:
Temperature: -30℃～65℃;
Humidity:
10 ~ 90%，RH
Communication Mode:
TCP/IP, WIFI
Power Supply:
12V Input or POE Supply
Call Elevator:
Support
Operating System:
LINUX System
Material:
ABS Plastic Housing+Tempered Glass Panel
Size:
177×117×26mm（FC-DJ01）121×93×24mm（FC-DJ02）
Weight:
0.3KG
Management Mode:
Touch Screen
Alarm Input:
8 Groups (Anti-theft, Door Sensor, Windows, Flood, Fire, Smoke, Others)
Alarm Output:
1 Group (Can Driving 100mA Warning Lights or Speakers)
Comparison Mode:
1:N/1:1
Firmware Upgrade:
Support Software OTA Upgrade
Display Screen:
7-inch (FC-DJ01)/4.3-inch (FC-DJ02) ISP Full-view HD Screen
Storage Capacity:
128M DDR3 Memory and 1GB EMMC Storage
Communication Interface:
TCP/IP, WIFI
Installation:
Wall Mounted
