High-definition
Screen
High-definition
Binocular Camera
2,000
Faces
100,000
Attendance Logs
LINUX System
Binocular Liveness
Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong
Light Recognition
Voice
Remind
QR Code
Recognition
Palms
Recognition

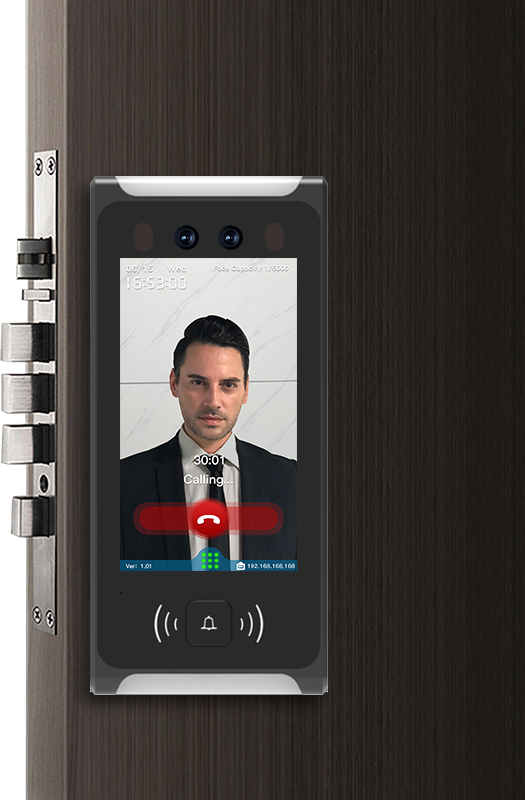

Video
Intercom
Lift
Management
Cloud
Management
U Disk
To Export Data
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms
Cloud Software Management
Device actively communicates with the server
Our cloud software supports computer, iPad, and mobile versions. It can be
used by installing apps or directly logging into the system through a browser
Desktop Software Management
Support Personnel Management,
Access Control, Time Attendance,
Elevator Control, Guard Tour,
Meeting Management, Vistor Management, etc
Support ACCESS and SQL Database
Support Dual-Core 1.2GHz, 1.0 Tops NPU
Built-in 1GB DDR3 Memory
Face, Palm Vein, QR Code, Password, Mifare Card,
Video Data and Other Dedicated AI Chips
Support 480×854 ultra HD resolution
Provides 400 lumens of brightness
Images can be seen clearly both indoor and outdoor
Adopt double 1 Megapixel true color COMS chip
It is more outstanding in face, palm vein and QR code recognition.
The speed is faster and the images are clearer and smoother.
Adopt professional glass green filter
to make the color more outstanding
The recommended communication distance between TCP/IP and the
switch is within 80 meters, and the WIFI distance is within 20 meters.
Support multiple communication protocols,
including HTTP, MQTT, WebSocket, TCP, UDP and WEB
Can directly open the WEB page through the IP address;
support personnel, department, equipment parameters,
record managements and other operation settings
Weather Forecast, Door Number
Date&Time, Room State
Support Hotel M1 Cards or 125KHz Cards
Achieve Hotel Card Opening Requirements
Utilizing existing color high-definition cameras
combined with rolling QR code algorithms, to achieve
QR code recognition and authentication
QR code door opening, QR code attendance,
QR code visitor authentication and QR code to take elevator
Using 850nm light speed to determine the authenticity of palm veins
Combining texture and palm shape for algorithmic operations
Utilizing human biometrics to achieve personal identification
(Less error rate, higher accuracy, faster speed, non-contact)

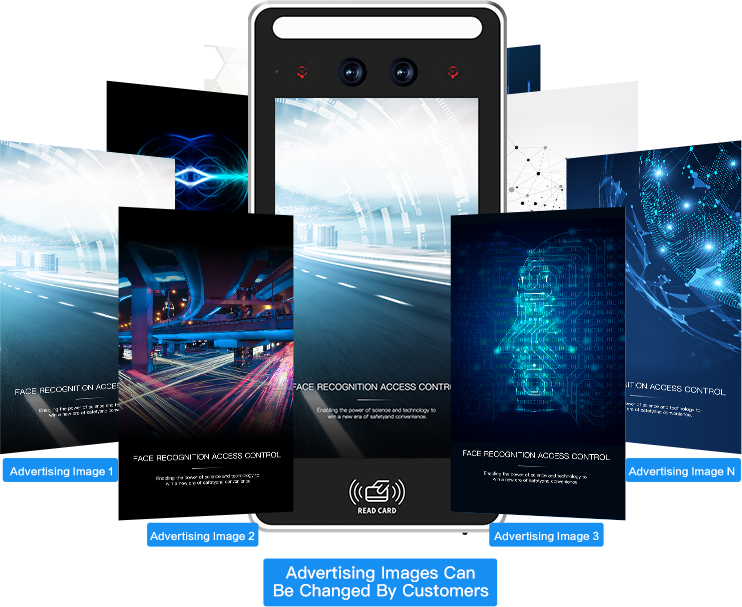

Can be Used for Notification and Promotion
Can switch wallpapers
Some Models Support Advertising
Images and Video Playback
Support Customize
Multiple National Languages
Main Purpose:
Access control, Time Attendance
Working Voltage:
DC12V（9 ~ 14V）
Working Current:
<2000mA
Working Environment:
Temperature: -30℃～65℃;
Humidity:
10 ~ 90%, RH
Operating System:
LINUX System
User Capacity:
2,000 Faces, 2,000 Palm Veins, 2,000 Cards, 2,000 Passwords, 2,000 QR Codes
Record Capacity:
100,000 Records, 50,000 Recording Photos, 10,000 System Records
Recognition Distance:
0.3m-3m
Recognition Speed:
< 0.3S
Material:
Metal Housing+Tempered Glass Panel
Size:
201×92×26mm
Wieght:
0.6KG
Algorithm Support:
Face Recognition, Palm Vein Recognition, QR Code Recognition
Management Mode:
Touch Screen, Desktop Software, Cloud Software, Mobile App
Registration Mode:
Face, QR Code, Password, Card (Dual Frequency Card Optional)
Comparison Mode：
1:N/1:1
Firmware Upgrade:
Support Software OTA Upgrade or USB Flash Drive Upgrade
Camera:
Wide Dynamic Binocular 1 Megapixel HD Camera
Display Screen:
4.5-inch/5-inch ISP Full View HD Screen
Storage Capacity:
Memory 1GB DDR3, Storage 8GB EMMC
Communication Interface:
TCP/IP、WIFI、Wiegand26 / 34 / 66
Other Interfaces:
Exit Button x 1, Door Sensor x 1, Fire Alarm Input x 1, Alarm Output x 1, Wiegand Input x 1, Wiegand Output x 1, Lock Control x 1, USB x 1, RS485 x 1
