High-definition
Screen
High-definition
Binocular Camera
50,000
Faces
1 Million
Attendance Logs
LINUX
System
Binocular Liveness
Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong
Light Recognition
Voice
Remind
QR Code
Identification (Optional)
Palm Vein Recognition
(Optional)

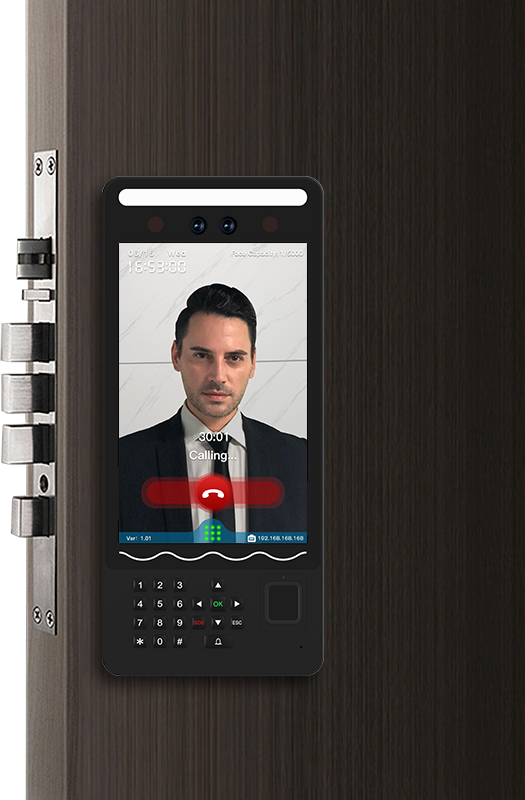

Video
Intercom
Lift
Management
Cloud
Management
Fingerprint
Identification
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms
Desktop Software Management
Support Personnel Management,
Access Control, Time Attendance,
Elevator Control, Guard Tour,
Meeting Management, Vistor Management, etc
Support ACCESS and SQL Database
Cloud Software Management
Device actively communicates with the server
Our cloud software supports computer, iPad, and mobile versions. It can be
used by installing apps or directly logging into the system through a browser
Support Dual-Core 1.5GHz, 1.5 Tops NPU
1GB DDR3 Memory
Face, Finerprint, Palm Vein, QR Code, Password,
Mifare Card, Video Data and Other Dedicated AI Chips.

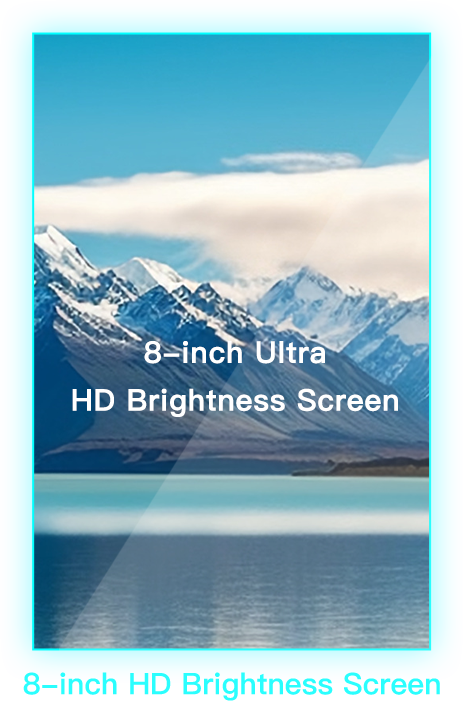

Support 800x1280 ultra high definition resolution
Provides 500 lumens of brightness, with true color LCD glass
Images can be seen clearly both indoor and outdoor
Reading Card Function Can be Customized

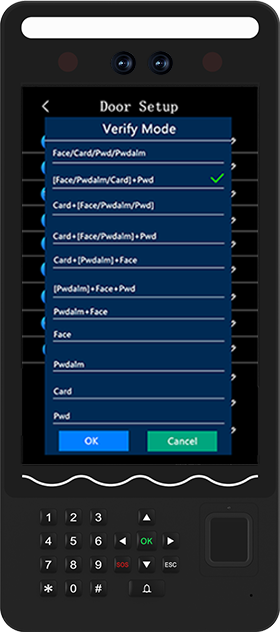

Selecting the Following Confirmation Modes As Needed
Using High-resolution Texture Recognition Lenses
Built in liveness detecting sensor, supports massive
fingerprint authentication and liveness judgment
Adopting Dual 2 Megapixel True Color COMS Chips
More Outstanding in Facial Recognition
Palm Vein Recognition, and QR Code Recognition
Faster speed, clearer and smoother images
Simultaneously using 3-frame level
strong backlight recognition technology
Under various ultra strong and low light conditions
it can still be clearly displayed
Adopt professional glass green filter
to make the color more outstanding
Capable of adapting to various complex lighting
environments such as backlight and strong light,
to ensure high-precision facial recognition rates
in different scenes and environments
50,000 Users50,000 Faces, 10,000 Palm Veins, 10,000 Fingerprints, 50,000 Cards, 50,000 QR Codes, 50,000 Passwords
可擴容至100000用戶
1 Million Access Records and Attendance Records
4G Communication Can be Customized
The recommended communication distance between TCP/IP
and the switch is within 80 meters, and the WIFI distance is within 20 meters.
Support multiple communication protocols,
including HTTP, MQTT, WebSocket, TCP, UDP and WEB
Can directly open the WEB page through the IP address;
support personnel, department, equipment parameters,
record managements and other operation settings
13.56MHz supports not only Mifare cards, but also NFC cards,
NFC phones, CPU cards
(Can set the card type and whether to enable
encryption and card control technology)
Utilizing existing color high-definition cameras
combined with rolling QR code algorithms, to achieve
QR code recognition and authentication
QR code door opening, QR code attendance,
QR code visitor authentication and QR code to take elevator
Device Continuously Upgrades to Enhance Application Value
Ver:1.0
Ver:2.0
Ver:3.0
Ver:4.0
Ver:5.0
Ver:6.0
Main Purpose:
Access control, Time Attendance
Working Voltage:
DC12V（9 ~ 14V）
Working Current:
<2000mA
Working Environment:
Temperature: -30℃～65℃;
Humidity:
10 ~ 90%，RH
Operating System:
LINUX System
User Capacity:
50,000 Users, 50,000 Faces, 50,000 QR Codes, 50,000 Cards, 50,000 Passwords; 10,000 Fingerprints, 10,000 Palms;
Record Capacity:
1 Million Records, 50,000 Record Photos, 10,000 System Records
Recognition Distance:
0.3-3m
Recognition Speed:
< 0.3S
Material:
Metal Housing+Tempered Glass Panel
Size:
215×112×25mm
Wieght:
0.6KG
Algorithm Support:
Face Recognition, Fingerprint Algorithm, Palm Vein Recognition, QR Code Recognition
Management Mode:
Touch Screen, Desktop Software, Cloud Software, Mobile App
Registration Mode:
Face, Fingerprint, Palm Vein, QR Code, Password, Card (Dual Frequency Card Optional)
Comparison Mode:
1:N/1:1
Firmware Upgrade:
Support Software OTA Upgrade or USB Drive Upgrade
Camera:
Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:
8-inch ISP Full View HD Screen
Storage Capacity:
Memory 1GB DDR3, Storage 8GB EMMC
Communication Interface:
TCP/IP、WIFI、4G(Optional)、 Wiegand26 / 34 / 66
Other Interfaces:
Exit Button x 1, Door Sensor x 1, Fire Alarm Input x 1, Alarm Output x 1, Wiegand Input x 1, Wiegand Output x 1, Lock Control x 1, USB x 1, RS485 x 1
