High-definition
Screen
High-definition
Binocular Camera
20,000 Faces
1 Million Logs
LINUX System
Binocular Liveness Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong Light Recognition
Voice
Remind
QR Code
Recognition
PalmsRecognition
Video
Intercom
Lift
Management
Cloud
Management
U Disk
To Export Data
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms
Desktop Software Management
Support Personnel Management,
Access Control, Time Attendance,
Elevator Control, Guard Tour,
Meeting Management, Vistor Management, etc
Support ACCESS and SQL Database
Cloud Software Management
Device actively communicates with the server
Our cloud software supports computer, iPad, and mobile versions. It can be
used by installing apps or directly logging into the system through a browser
Support Dual-core Cortex A7 1GHz Main Frequency,
0.6Tops NPU, Built in 256M DDR3 Memory
Specialized AI Chips for Face, Fingerprint, Palm Vein,
QR Code, Password, Mifare Card, Video Data, etc

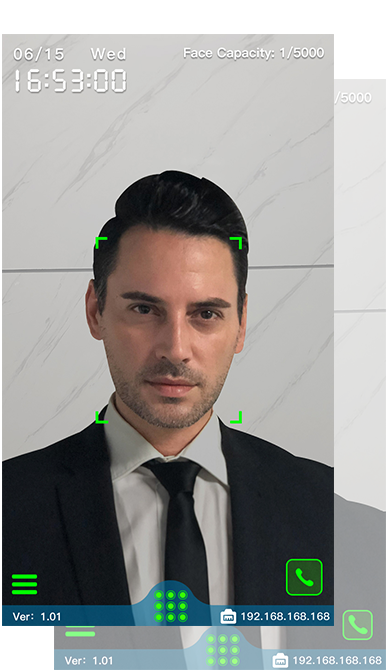

Support 720x1280 ultra high definition resolution
Provides 500 lumens of brightness, with true color LCD glass
Images can be seen clearly both indoor and outdoor
SONY IMX307 provides ultra clear color picture quality
More outstanding in facial recognition, palm vein recognition,
and QR code recognition, with faster speed and clearer and smoother images
Adopt professional glass green filter
to make the color more outstanding
Capable of adapting to various complex lighting
environments such as backlight and strong light,
to ensure high-precision facial recognition rates
in different scenes and environments
20,000 Users 20,000 Faces, 10,000 Palm Veins, 20,000 Cards, 20,000 QR Codes, 20,000 Passwords
可擴(kuò)容至50000用戶
1 Million Access Records and Attendance Records
4G Communication Can be Customized
The recommended communication distance between TCP/IP
and the switch is within 80 meters, and the WIFI distance is within 20 meters.
Support multiple communication protocols,
including HTTP, MQTT, WebSocket, TCP, UDP and WEB
Can directly open the WEB page through the IP address;
support personnel, department, equipment parameters,
record managements and other operation settings
When it is not convenient for users to manage
their devices through a computer, the device
provides a touch screen menu management function,
which can directly authorize personnel for opening doors,
time attendance, or taking elevator
13.56MHz supports not only Mifare cards, but also NFC cards,
NFC phones, CPU cards
(Can set the card type and whether to enable
encryption and card control technology)
Using 850nm light speed to determine the authenticity of palm veins
Combining texture and palm shape for algorithmic operations
Utilizing human biometrics to achieve personal identification
Less error rate, higher accuracy, faster speed, non-contact
Utilizing existing color high-definition cameras
combined with rolling QR code algorithms, to achieve
QR code recognition and authentication
QR code door opening, QR code attendance,
QR code visitor authentication and QR code to take elevator
Owner: Michael
Elevator: Take Elevator to the 6th Floor
Swipe Card/Facial Recognition/QR Code/Password/
Palm Vein/Fingerprint Verification to Take Elevator
It Can Cooperate with the Intercom System to
Automatically Pick Up and Drop Off Visitors
Can be Used for Notification and Promotion
Can switch wallpapers
Some Models Support Advertising
Images and Video Playback
Selecting the Following Confirmation Modes As Needed
Built in Multi-national Voice
Attendance Schedule
by USB drive
View Attendance Records
Support Independent Attendance
Can Independently Complete Attendance Work and Output the Reports
Device Continuously Upgrades to Enhance Application Value
Ver:1.0
Ver:2.0
Ver:3.0
Ver:4.0
Ver:5.0
Ver:6.0
Provide self-service OEM technology to achieve comprehensive customization
of OEM or ODM for product models, advertising images,
product names, manufacturer names, software information, etc
Main Uses:
Access Control, Time Attendance, Video Intercom,
Elevator Control, Cabinet Lock
Working Voltage:
DC12V（9 ~ 14V）
Working Current:
<2000mA
Working Environment:
Temperature: -30℃～65℃；
Humidity: 10 ~ 90%, RH
Operating System:
LINUX System
User Capacity:
20,000 Faces; 20,000 QR Codes; 20,000 Cards;
20,000 Passwords; 10,000 Palms
Record Capacity:
1 Million Records; 10,000 Recording Photos;
10,000 System Records
Recognition Distance:
0.3m-3m
Recognition Speed:
< 0.3S
Material:
Metal Housing+Tempered Glass Panel
Size:
180×87×23mm
Weight:
0.8KG
Elevator Expansion:
Support for Elevator and Cabinet Lock
Algorithm:
Face Recognition, Palm Vein Recognition,
QR Code Verification
Management Mode:
Touch Screen, Desktop Software,
Cloud Software, Mobile App
Registration Methods:
Face, Palm Vein, Password, Mifare Card, Dual Frequency Card Optional (ID Card and Mifare Card)
Comparison Mode:
1:N/1:1
Firmware Upgrade:
Software OTA Upgrade or USB Flash Drive Upgrade
Camera:
Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:
5-inch ISP Full-view HD Screen
Storage:
256M DDR3 Memory, 8GB EMMC Storage
Communication:
TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66
Other Interfaces:
Exit Button x1, Door Sensor x1, Fire Input x1,
Alarm Output x1, Wiegand Output x1, Wiegand Input x1,
Magnetic Lock Control x1, USB x1, RS485 x1
Installation Ways:
Wall Mounted or Installed on the Turnstile
