High-definition
Screen
High-definition Binocular Camera
5,000 Faces
200,000
Attendance Logs
LINUX System
Binocular Liveness Detection
1:N/1:1
Comparison
High Speed
Recognition
Wide Dynamic Strong Light Recognition
Voice
Remind
QR Code
Recognition
PalmsRecognition
AI
Processor
CS
Management
Cloud
Management
IP65
Waterproof
Remote
Upgrade
SDK
Integration
Multi-communication
Mode
Free Docking to
Other Platforms
Desktop Software Management
Support Personnel Management,
Access Control, Time Attendance,
Elevator Control, Guard Tour,
Meeting Management, Vistor Management, etc
Support ACCESS and SQL Database
Cloud Software Management
Device actively communicates with the server
Our cloud software supports computer, iPad, and mobile versions. It can be
used by installing apps or directly logging into the system through a browser
Support Dual-Core 1GHz, 0.8 Tops NPU
Built-in 256M DDR3 Memory
Specialized AI Chips for Face, Fingerprint, Palm Vein,
QR Code, Password, Card, etc.
Support 480×854 ultra HD resolution
Provides 400 lumens of brightness
Images can be seen clearly both indoor and outdoor
Adopt double 1 Megapixel true color COMS chip
It is more outstanding in face, palm vein and QR code recognition.
The speed is faster and the images are clearer and smoother.
Adopt professional glass green filter
to make the color more outstanding
Capable of adapting to various complex lighting
environments such as backlight and strong light,
to ensure high-precision facial recognition rates
in different scenes and environments
5,000 Users5,000 Faces, 5,000 Palm Veins, 5,000 Cards, 5,000 Passwords
可擴容至20000用戶
200,000 Attendance Logs
The recommended communication distance between TCP/IP and the
switch is within 80 meters, and the WIFI distance is within 20 meters.
Support multiple communication protocols,
including HTTP, MQTT, WebSocket, TCP, UDP and WEB
Can directly open the WEB page through the IP address;
support personnel, department, equipment parameters,
record managements and other operation settings
When it is not convenient for users to manage
their devices through a computer, the device
provides a touch screen menu management function,
which can directly authorize personnel for opening doors,
time attendance, or taking elevator
13.56Mhz supports not only Mifare cards,
but also NFC cards and CPU cards.
(Can set the card type and whether to enable
encryption and card control technology)
Using 850nm light speed to determine the authenticity of palm veins
Combining texture and palm shape for algorithmic operations
Utilizing human biometrics to achieve personal identification
Less error rate, higher accuracy, faster speed, non-contact

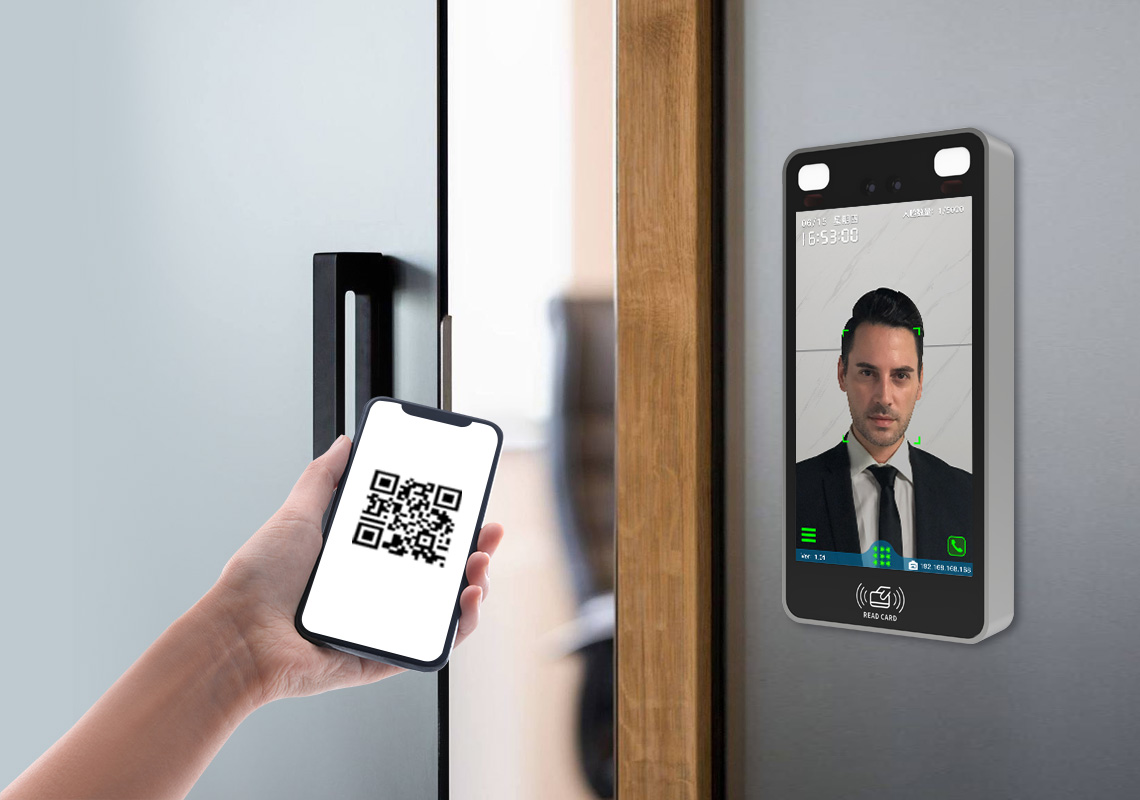

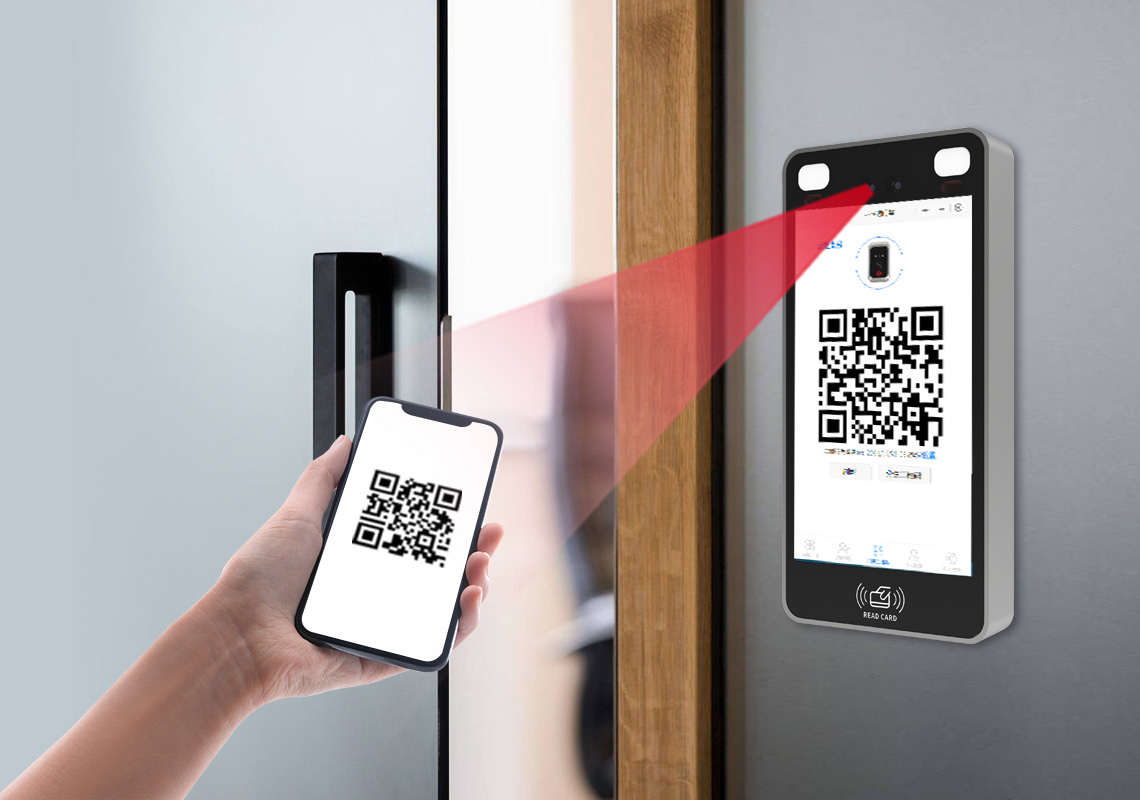

Utilizing existing color high-definition cameras
combined with rolling QR code algorithms, to achieve
QR code recognition and authentication
QR code door opening, QR code attendance,
QR code visitor authentication and QR code to take elevator
Selecting the Following Confirmation Modes As Needed
Built in Multi-national Voice
Improve the application value of device through upgrading
Ver:1.0
Ver:2.0
Ver:3.0
Ver:4.0
Ver:5.0
Ver:6.0
Provide self-service OEM technology to achieve comprehensive customization
of OEM or ODM for product models, advertising images,
product names, manufacturer names, software information, etc
Main Uses:
Access Control, Time Attendance
Working Voltage:
DC12V（9 ~ 14V）
Working Current:
<1000mA
Working Environment:
Temperature: -30℃～65℃；
Humidity: 10 ~ 90%, RH
Operating System:
LINUX System
User Capacity:
5,000 Faces; 5,000 QR Codes; 5,000 Cards;
5,000 Passwords; 5,000 Palms
Record Capacity:
200,000 Records; 10,000 Recording Photos;
10,000 System Records
Recognition Distance:
0.3m-2m
Recognition Speed:
< 0.3S
Material:
Metal Housing+Tempered Glass Panel

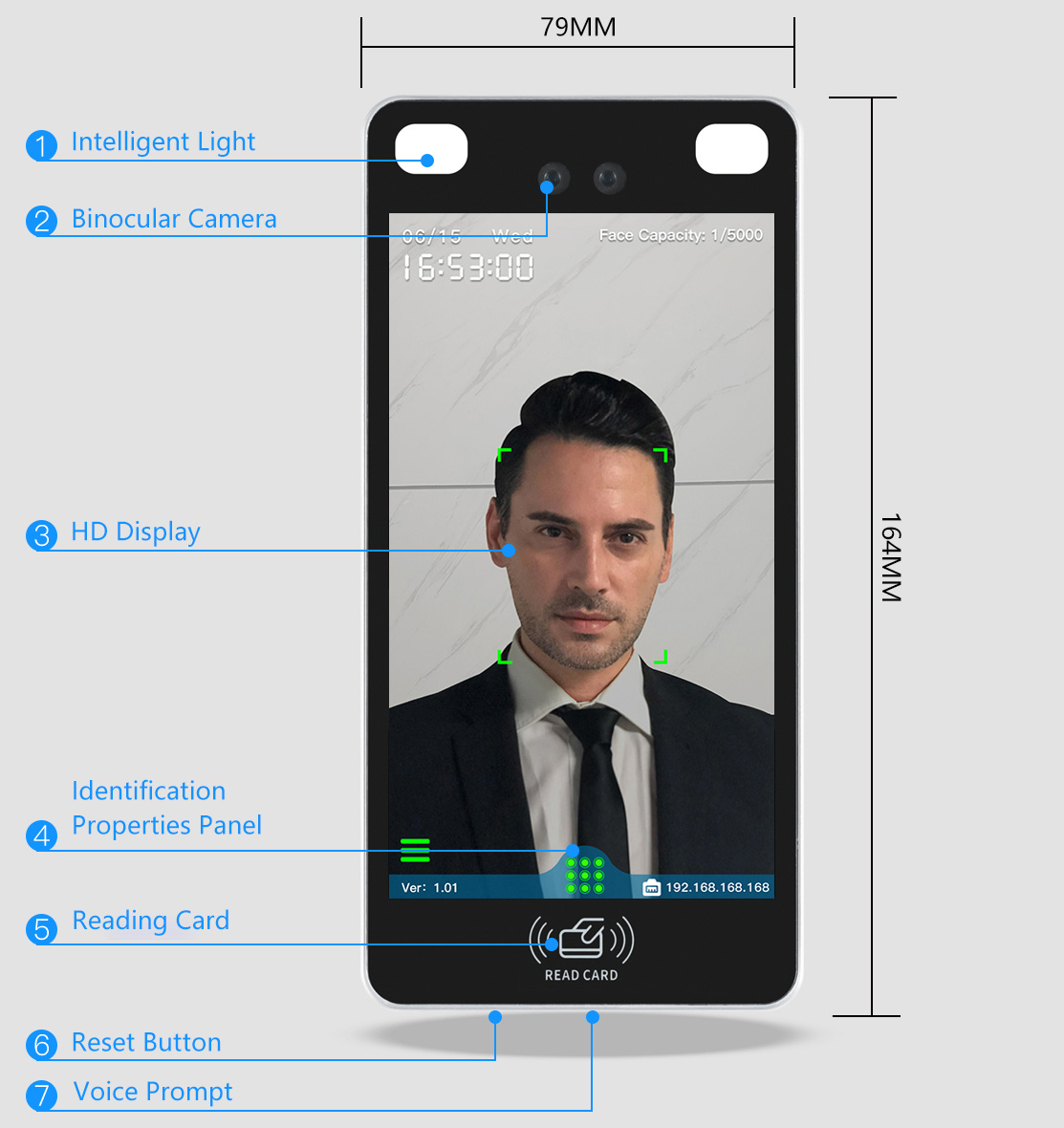

Size:
165×79×21mm
Weight:
0.6KG
Algorithm:
Face Recognition, Palm Vein Recognition,
QR Code Verification
Management Mode:
Touch Screen, Desktop Software,
Cloud Software, Mobile App
Registration Methods:
Face, Palm Vein, Password, Mifare Card
Comparison Mode:
1:N/1:1
Firmware Upgrade:
Software OTA Upgrade
Camera:
Wide Dynamic Binocular 2 Megapixel HD Camera
Display Screen:
5-inch ISP Full-view HD Screen
Storage:
256M DDR3 Memory, 8GB EMMC Storage
Communication:
TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66
Other Interfaces:
Exit Button x1, Door Sensor x1,
Alarm Output x1, Wiegand Output x1, Magnetic Lock Control x1
Installation Ways:
Wall Mounted or Installed on the Turnstile
